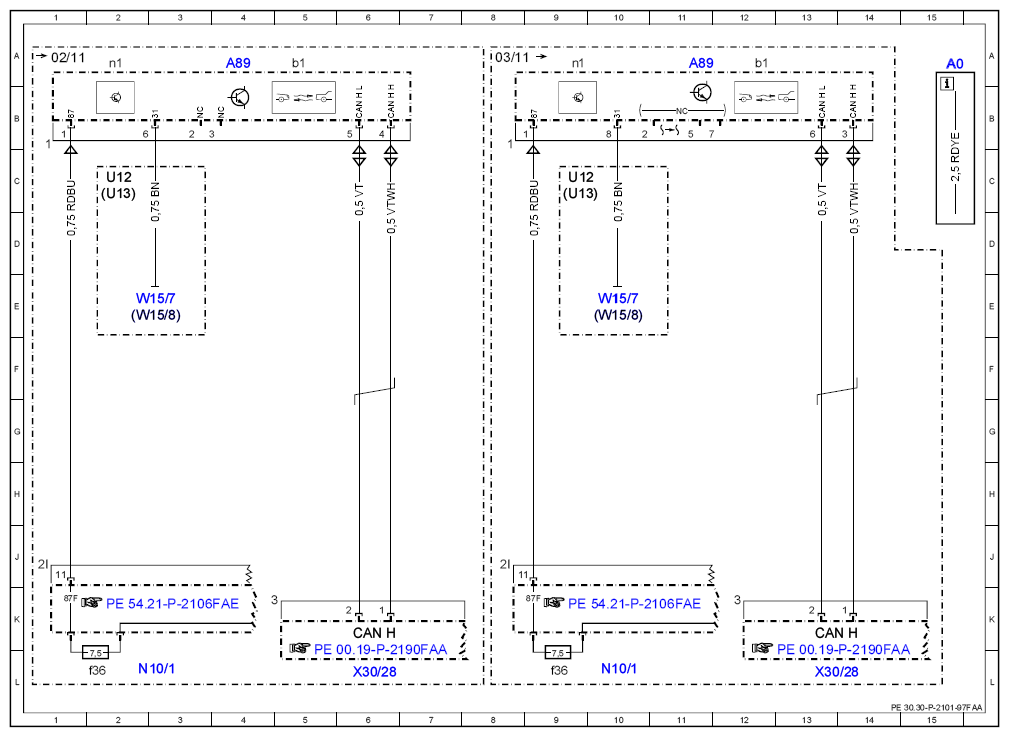

Wiring diagram for Distronic (DTR) control unit - PE30.30-P-2101-97FAA
WARNING: This page is about a different car, the 2011 Mercedes-Benz C350, 2010 Mercedes-Benz C350, 2009 Mercedes-Benz C350, and 2008 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
| Code : | Designation : | Position : |
|---|---|---|
| A0 | Color code key | 15A |
| A89 | DISTRONIC electric controller unit | 4A |
| A89 | DISTRONIC electric controller unit | 11A |
| A89b1 | DISTRONIC radar sensor | 5A |
| A89b1 | DISTRONIC radar sensor | 12A |
| A89n1 | DISTRONIC control unit | 2A |
| A89n1 | DISTRONIC control unit | 9A |
| CAN H | Vehicle dynamics CAN | 6K |
| CAN H | Vehicle dynamics CAN | 13K |
| N10/1 | Front SAM control unit with fuse and relay | 2L |
| N10/1 | Front SAM control unit with fuse and relay | 10L |
| N10/1f36 | Fuse 36 | 2L |
| N10/1f36 | Fuse 36 | 9L |
| U12 | Valid for left-hand drive vehicles | 9C |
| U12 | Valid for left-hand drive vehicles | 2C |
| U13 | Valid for right-hand drive vehicles | 9C |
| U13 | Valid for right-hand drive vehicles | 2C |
| W15/7 | Right front footwell ground point | 10E |
| W15/7 | Right front footwell ground point | 2E |
| W15/8 | Ground point (right front footwell CAN) | 10E |
| W15/8 | Ground point (right front footwell CAN) | 2E |
| X30/28 | Vehicle dynamics CAN voltage distributor electrical connector | 6L |
| X30/28 | Vehicle dynamics CAN voltage distributor electrical connector | 13L |
