Component description for the aspirator shutoff valve with integral check valve - GF14.30-P-2100CY

WARNING: This page is about a different car, the 2011 Mercedes-Benz C350, 2010 Mercedes-Benz C350, 2009 Mercedes-Benz C350, and 2008 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272.911 in MODEL 204.0 up to Model Year 8

ENGINE 272.921 in MODEL 204.0/2 up to Model Year 8

ENGINE 272.947 in MODEL 204.0/2 up to Model Year 8

ENGINE 272.948 in MODEL 204.0 up to Model Year 8

ENGINE 272.961 in MODEL 204.0/2 up to Model Year 8

ENGINE 272.971 in MODEL 204.0 up to Model Year 8

Location

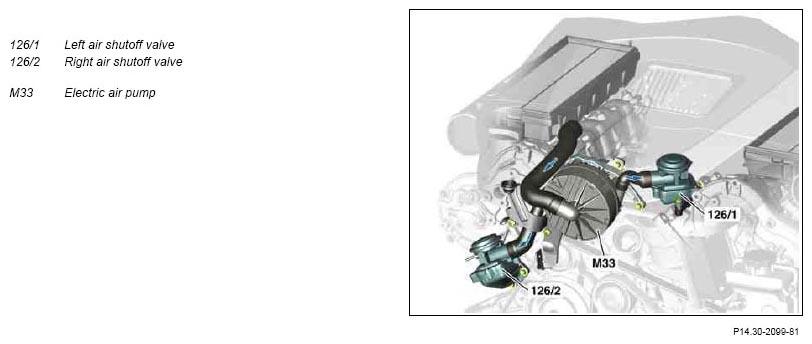

Fig 1: Identifying Left And Right Air Shut Off Valve And Electric Air Pump

Courtesy of MERCEDES-BENZ USA

The air shutoff valves are located at the front on the engine.

Task

The air shutoff valves release the way for injected air for actuation of air injection.

When air injection is switched off air is prevented from being inducted into the exhaust ports, as a result of the flow of the exhaust gases.

Function

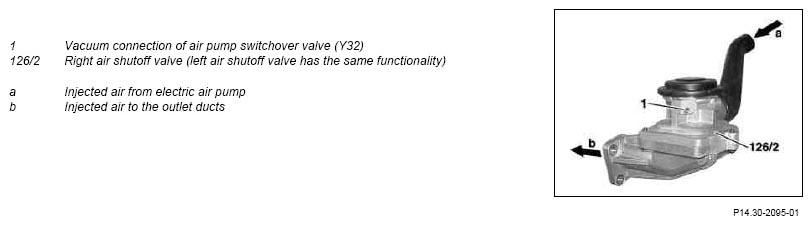

Fig 2: Identifying Air Pump Switch Over Valve And Right Air Shutoff Valve

Courtesy of MERCEDES-BENZ USA

Both air shutoff valves are actuated simultaneously for released air injection, via the air pump switchover valve, with vacuum from the variable intake manifold. The air shutoff valves open and the injected air from the electric air pump can flow into the exhaust ducts of the cylinder heads.

The integral check valves, for a switched of air injection, prevent ingress of exhaust gas into the air shutoff valves and protect them in this way from soiling and thermal destruction.
