PARKTRONIC location of components - GF54.65-P-0003-01CW

MODEL 204.0 /2 with CODE (220) Parktronic system (PTS) up to Model Year 8

Illustrated on model 204.0

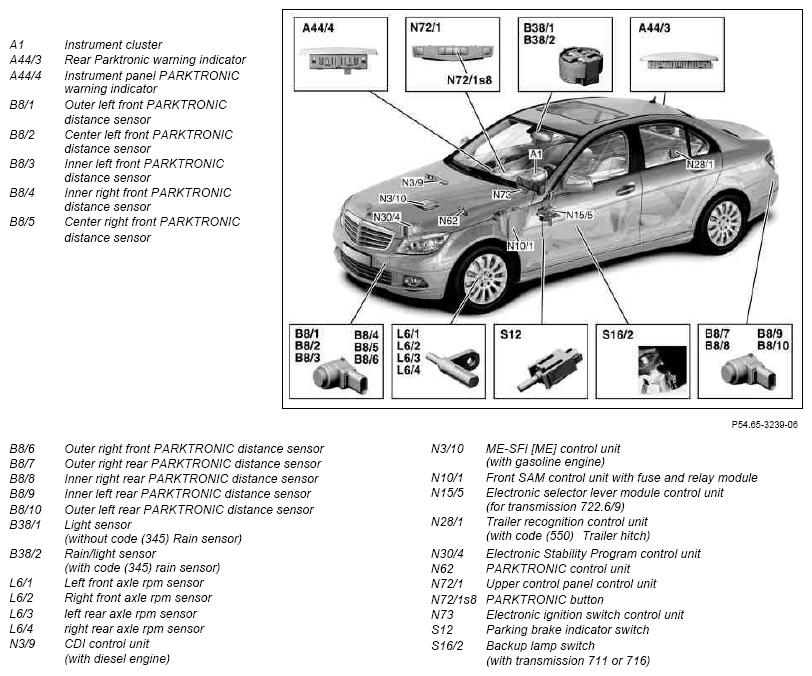

Fig 1: Locating PARKTRONIC System Components

Courtesy of MERCEDES-BENZ USA
