PARKTRONIC block diagram - GF54.65-P-0003-02CW

MODEL 204.0 /2 with CODE (220) Parktronic system (PTS) up to Model Year 8

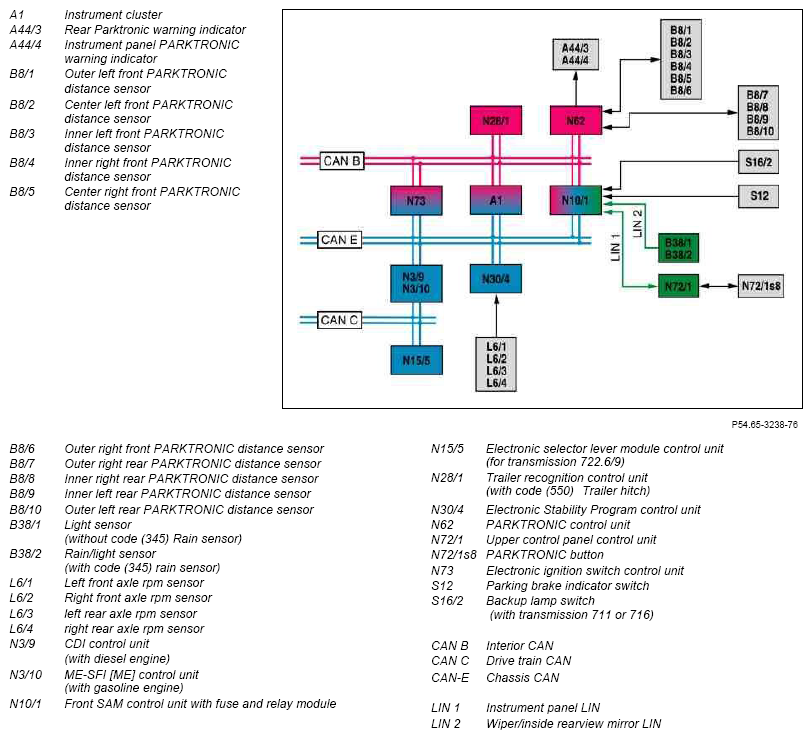

Fig 1: PARKTRONIC Block Diagram

G07531224

Courtesy of MERCEDES-BENZ USA
