Combination switch - Component description - GF82.30-P-5001CW
MODEL 204.0 /2 up to Model Year 8
Illustrated on model 204.0

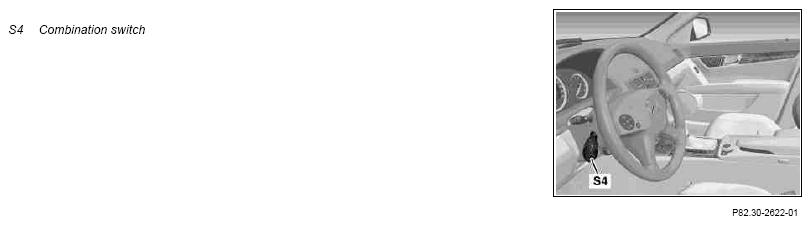

Location
The combination switch is located on the steering column. It is directly put onto the steering column module control unit (N80).
Task
The combination switch is used to operate the following functions:
Turn signaling, one-touch turn signaling, high and low beams, headlamp flasher, windshield wiper and windshield washer system.
Activation of the individual functions
- Flash on and off
The turn signal is activated by pressing the combination switch upward for the right side and downward for the left side beyond the detent point.
- One-touch turn signaling
One-touch turn signaling is activated by briefly pressing the combination switch upward for the right side and downward for the left side as far as the detent point.
The turn signal flashes 3 times.
- Main and low beams
Switching on the high beam is activated by pressing the combination switch forward. Switching over to low beam takes place by pulling back the combination switch to the zero position.
- Headlight flasher
The headlamp flasher is activated for as long as the combination switch is pulled to the rear.
- Front windscreen wipers
The windshield wipers are switched on by turning the front part of the combination switch.
- Position "1" activates intermittent wipe with low sensitivity (with code (345) Rain sensor) or intermittent wipe a long intermission time (without code (345) Rain sensor).
- Position "2" activates intermittent wipe with high sensitivity (with code (345) Rain sensor) or intermittent wipe a short intermission time (without code (345) Rain sensor).
- Position "3" activates continuous wiping at a low speed.
- Position "4" activates continuous wiping at a high speed.
- Front windshield washer system
The windshield washer system is switched on by pressing the combination switch in the axial direction.
A brief operation in the axial direction activates touch wiping.
- Rear window wiper (model 204.2)
The rear window wiper is switched on by turning the rear section of the combination switch. Position "1" activates the intermittent wipe.
- Rear windshield washer system (model 204.2)
The windshield washer system is switched on by pushing the rear section of the combination switch downwards or from position "1" upwards.
The signals are read in by the steering column module control unit and made available to the corresponding control units via the chassis CAN.
