Instrument cluster (IC), location of components - GF54.30-P-0002-04CW

MODEL 204.0 /2 up to Model Year 8

Illustrated on model 204.0

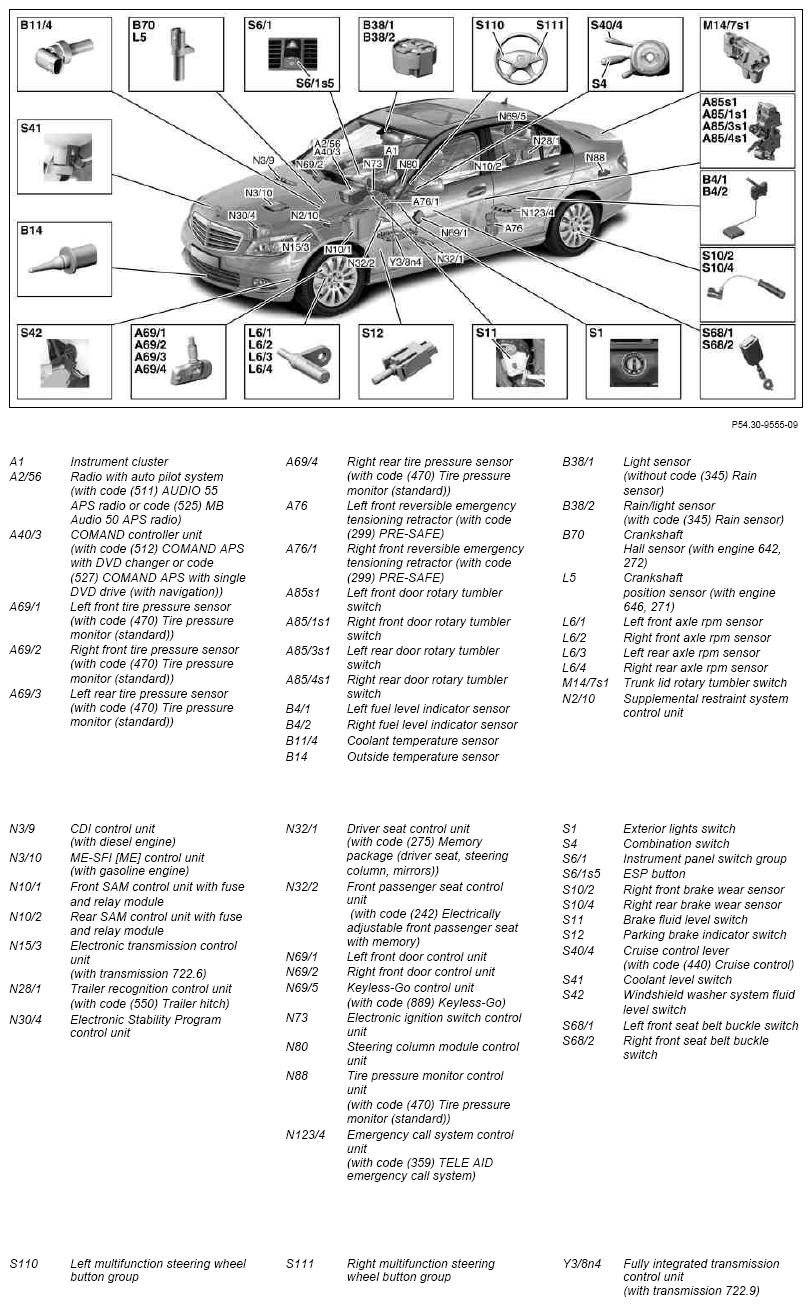

Fig 1: Locating Instrument Cluster Components

Courtesy of MERCEDES-BENZ USA
