Collision Avoidance And Electrical System - Basic Knowledge - C63/C350 (204)
>>
Basic Knowledge
>>
Instrument cluster (IC), block diagram - GF54.30-P-0002-01CW
Instrument cluster (IC), block diagram - GF54.30-P-0002-01CW
MODEL 204.0 /2 up to Model Year 8

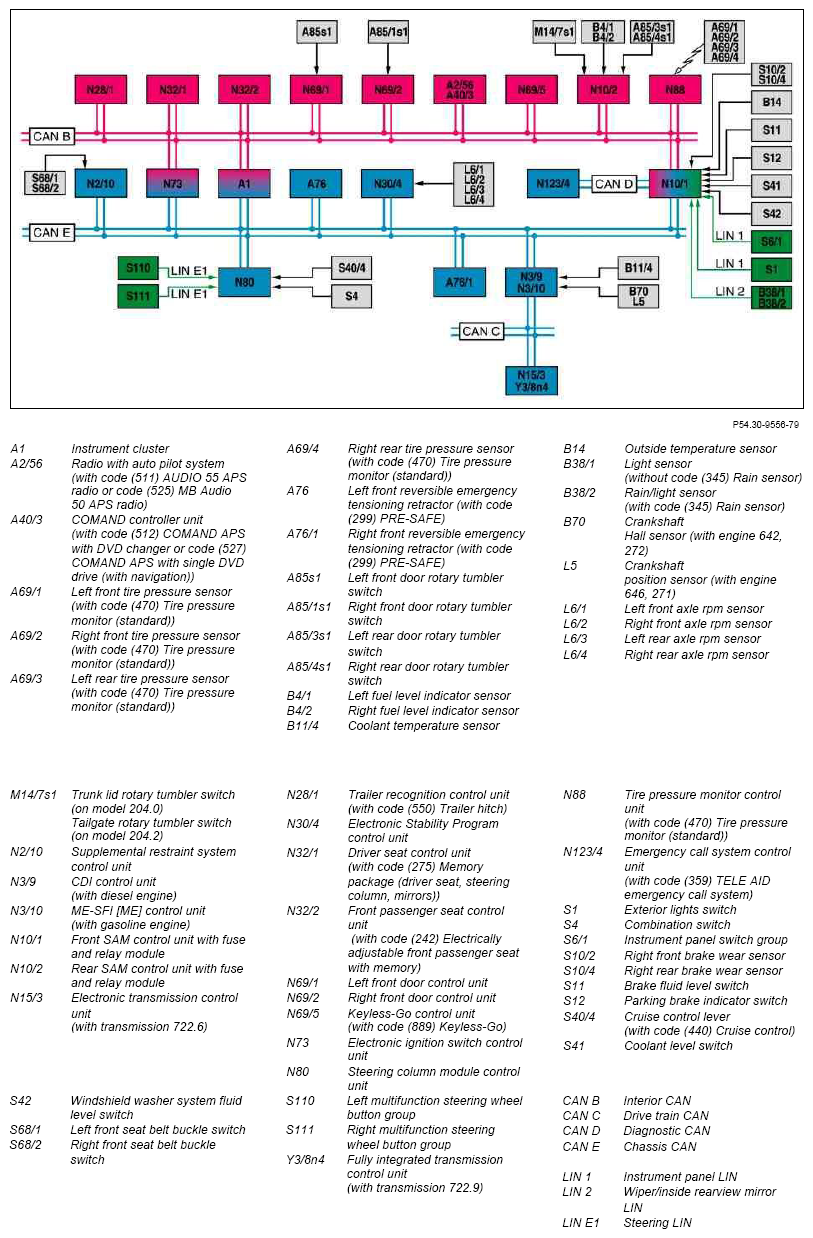

Fig 1: Instrument Cluster Block Diagram
Courtesy of MERCEDES-BENZ USA
Courtesy of MERCEDES-BENZ USA
