Pulling off rubber mount with grooved ball bearing - AR41.10-P-0100-07TX

Fig 1: Identifying Two-Legged Puller (000 589 88 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Puller Legs (129 589 00 34 00)

Courtesy of MERCEDES-BENZ USA

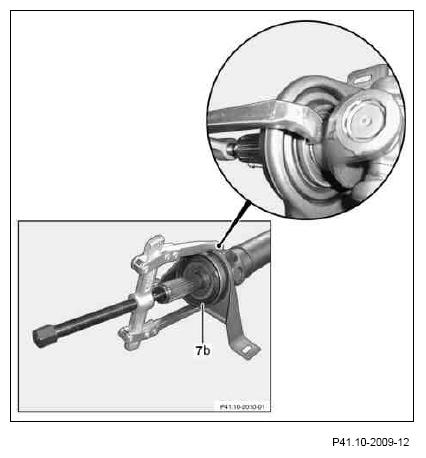

1. Position puller, two-armed with pulling arms (see magnified section).
2. Pull rubber mount (7b) together with grooved ball bearing off the joint fork.
   Fig 3: Identifying Rubber Mount

   Courtesy of MERCEDES-BENZ USA
