Gap dimensions on hoods, doors and lids - AR60.00-P-0700-01EL
TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS
| Number | Designation | Type 218.3 | |||
|---|---|---|---|---|---|

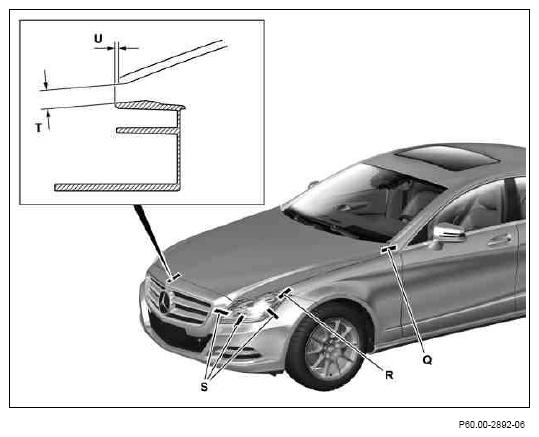

| BE60.00-P-1001-01O | Gap dimension | Engine hood to fender | Dimension "A" | mm | 4.0 (±1) |
| Engine hood to headlamp | Dimension "B" | mm | 4.0 (±1) | ||
| Engine hood to bumper | Dimension "C" | mm | 4.0 (±1) | ||
| Engine hood to A-pillar | Dimension "Q" | mm | 4.5 (±1) | ||
| Fender/headlamps | Dimension "R" | mm | 4.0 (±1) | ||
| Bumper to headlamp (circumferential) | Dimension "S" | mm | 3.5 (±1) | ||
| Mounting rail, bumper to engine hood | Dimension "T" | mm | 7.5 (+0.5) | ||
| Mounting rail, bumper to engine hood | Dimension "U" | mm | 1.0 (±0.5) | ||
| See picture | AR60.00-P-0700-01 EL | ||||
| BE60.00-P-1002-01O | Gap dimension | Fender to A-pillar | Dimension "D" | mm | 3.5 (±1) |
| Front door to fender | Dimension "E" | mm | 4.0 (-0.5/+1) | ||
| Front door to rear door | Dimension "F" | mm | 5.0 (-0.5/+1) | ||
| B-pillar cover to front window | Dimension "G" | mm | 10 (±1) | ||
| B-pillar cover to rear window | Dimension "H" | mm | 10 (±1) | ||
| Rear door to side section, bottom | Dimension "I" | mm | 4.5 (±1) | ||
| See picture | AR60.00-P-0700-01 EL | ||||
| BE60.00-P-1003-01O | Gap dimension | Trunk lid to rear fender, top | Dimension "J" | mm | 4.0 (±1) |
| Trunk lid to rear lamp unit | Dimension "K" | mm | 5.0 (±1) | ||
| Trunk lid to bumper | Dimension "L" | mm | 5.5 (±1) | ||
| Rear fender to rear lamp unit | Dimension "M" | mm | 3.0 (±1) | ||
| See picture | AR60.00-P-0700-01 EL | ||||
| BE60.00-P-1004-01O | Gap dimension | Fuel filler flap | Dimension "N" | mm | 3.0 (-0.5/+1) |
| See picture | AR60.00-P-0700-01 EL | ||||
Adjust hoods, doors and lids as shown in drawing. The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max. 0.5 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on bodies damaged in accidents.

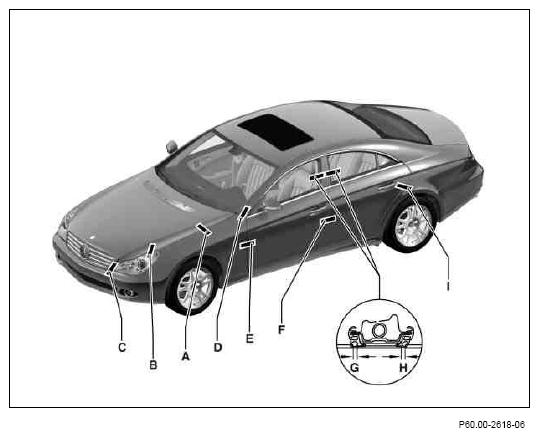

Illustrated on model 219

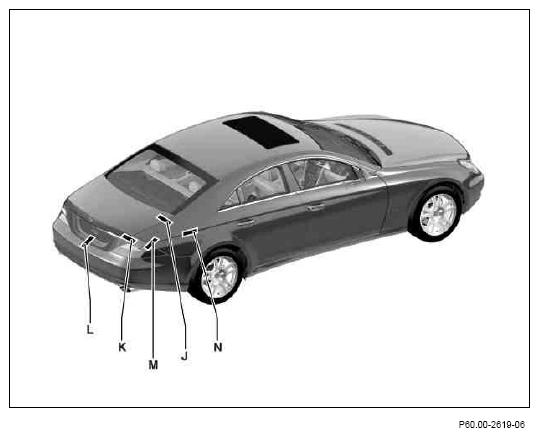

Illustrated on model 219
