Crossing out vehicle identification number and restamp in spare field - AR60.00-P-0800-05CW

Fig 1: Identifying Stamping Guide (171 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Set Of Number Stamps (140 589 26 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Set Of Letter Stamps (140 589 26 63 05)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

Cross out erroneous vehicle identification number with letter stamp "X" in stamping field (2).
The required position for the punch field (1) (reserve field) can be determined by turning the window plate (5)
Turn window plate (5) to reserve field.
Observe positioning (I) of window plate!
Start with "Mercedes star" number stamp at left in window plate (5) on stop.
The tip of the Mercedes star should point upward in the script.
Then position letter stamp "W" with left edge on first increment on scale of window plate (5) in stamping field and (2) and stamp in.

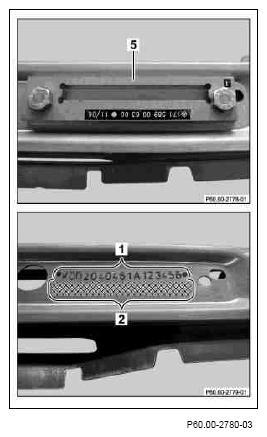

Fig 4: Identifying Punch Field And Stamping Field
Courtesy of MERCEDES-BENZ USA
Move forward one increment mark on the scale in the window plate (5) with each subsequent letter stamp until the complete vehicle identification number and final Mercedes star have been stamped in the crossmember below the right driver seat.
The entire width of the vehicle identification number is 106 +/-4 mm.
Remove stamping guide.
Coat hole with zinc dust paint.
