Check vehicle underside in visible area for signs of damage, leaks and corrosion - AP60.00-P-0051EW
MODEL 204
| Danger | Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A |
| Notes on evaluating leakages | AH00.00-N-0011-01A | ||
| Preparatory activity | |||
| 1 | Lift vehicle on vehicle lift | ||
| Check | |||

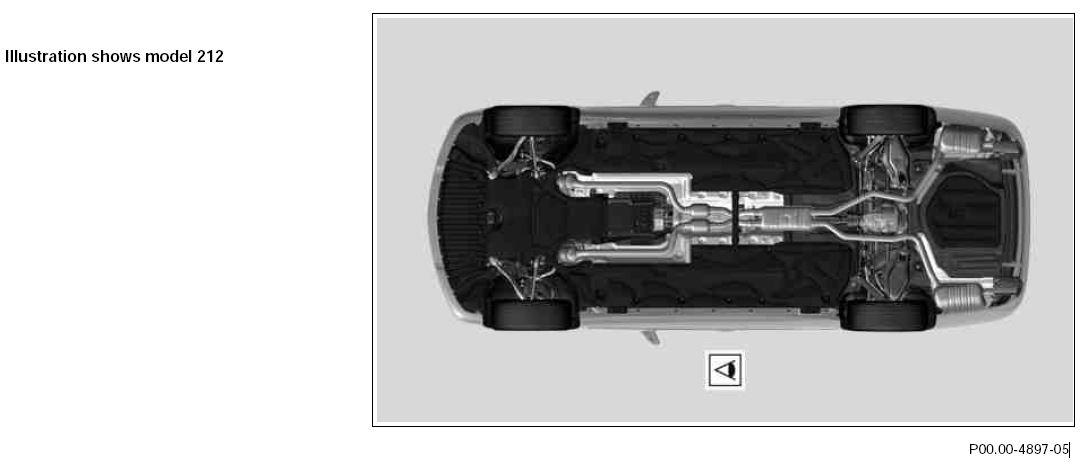

| 2 | Check visible components, lines and hoses on underfloor for damage, routing and leakage | - Steering, Spring elements, Shock absorbers, Suspension, AIRMATIC/ABC/MAGIC BODY CONTROL, Boots of front axle shafts (only with 4MATIC), Boots of rear axle shafts, Underfloor paneling, Heat shields, Exhaust system, BlueTEC emission control system, Brake system, Fuel system, Manual transmission, Clutch operating system, Automatic transmission, Transfer case, Rear axle differential |
