Check outside of vehicle in visible area for signs of damage - AP60.00-P-0050C

MODEL 204.3, 207.3

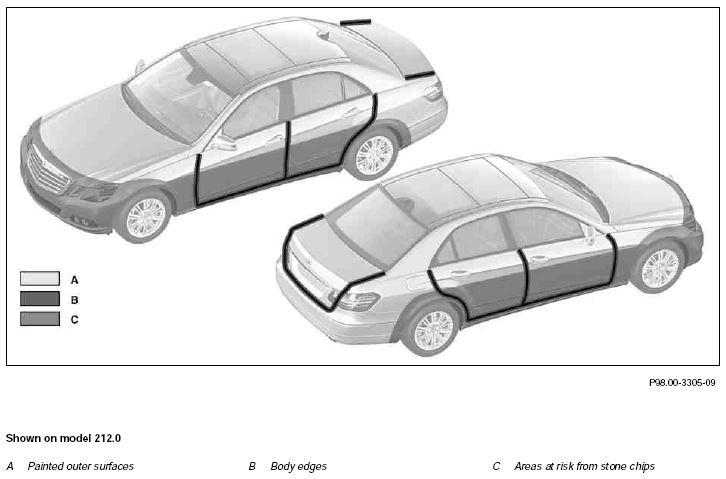

Fig 1: Outside Areas Of Vehicle To Check For Signs Of Damage

	Check
1	Check vehicle body and detachable parts for damage and completeness	Dents/deformation Component missing Cracks/scratches Other damage If there are problems: Rectify the damage, subject to separate repair order, if necessary.
2	Check vehicle paintwork for damage and check vehicle body for corrosion Damage and stress caused to paintwork by external influences	The main complaints are in the areas of the body edges (B) and areas (C) subject to stone chippings. Damage to the vehicle paintwork are, e.g.: Stone chipping Scratch Environmental influence Paint peeling off If there are problems: Proceed in accordance with the countryspecific regulations for mobility and body shell complaints subject to separate repair order.	AH98.00-P-8070-02A
3	Check exterior lights glazing for damage	Water entry Reflector not functioning Component missing Corrosion Cracks/scratches Other damage If there are problems: Rectify the damage, subject to separate repair order, if necessary.
