Retrofit pedal pads - AN29.10-P-0002CW

MODEL 204.0##/2## (except 204.075/077/275/277) 1# except CODE (950) AMG sport package

Shown on vehicle with transmission 722

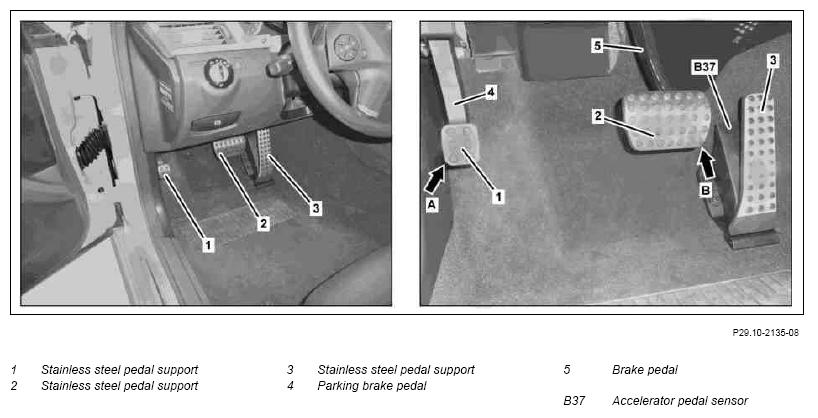

Fig 1: Identifying Pedal Pads Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove accelerator pedal sensor (B37)	The accelerator pedal sensor (B37) with its pedal cover is no longer required.	AR30.12-P-1321CW
2	Remove pedal rubber support of parking brake pedal (4)	The pedal rubber support of the parking brake pedal (4) is no longer required.
3	Remove pedal rubber support of the clutch pedal	Only on vehicles with transmission 711 and 716 The pedal rubber support of the clutch pedal is no longer required.
4	Remove pedal rubber support of brake pedal (5)	The pedal rubber support of the brake pedal (5) is no longer required.
	Install
5	Install accelerator pedal sensor (B37) with stainless steel support (3)		AR30.12-P-1321CW
6	Attach stainless steel pedal support (1) to parking brake pedal (4) in lower area (arrow B) and invert clockwise over the parking brake pedal (4)	Do not use any sliding agent and lubricant when installing otherwise the tight seating of the stainless steel pedal support is not guaranteed (1).
7	Attach stainless steel pedal support to clutch pedal in the lower area and invert clockwise over the clutch pedal	Only on vehicles with transmission 711 and 716
		Do not use any sliding agent and lubricant when installing otherwise the tight seating of the stainless steel pedal support is not guaranteed ().
8	Attach stainless steel pedal support (2) to the brake pedal (5) in the lower area (arrow B) and invert clockwise over the brake pedal (5)	Do not use any sliding agent and lubricant when installing otherwise the tight seating of the stainless steel pedal support is not guaranteed (2).
9	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach "Stainless steel pedal covers as per AN29.10-P-0002CW " note under field organization texts to design group 29.
