Brake light switch, component description - GF42.10-P-4003CW
MODEL 204.0/2 up to Model Year 8
Illustrated on model 204.0

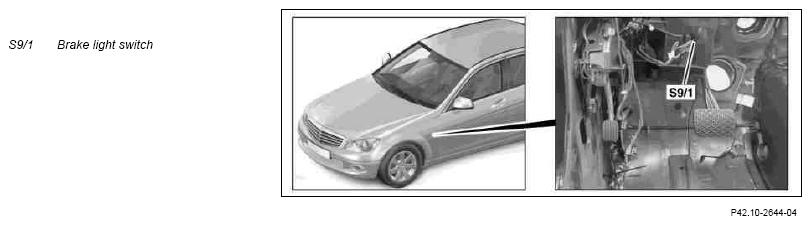

Location
The brake light switch is located on the brake pedal.
Tasks
The brake light switch detects the operation of the brake pedal. It is read in discreetly by the Electronic Stability Program control unit (N30/4).
