Adaptive Brake (ABR) location of components - GF42.47-P-0001-02CW

Illustrated on model 204.0

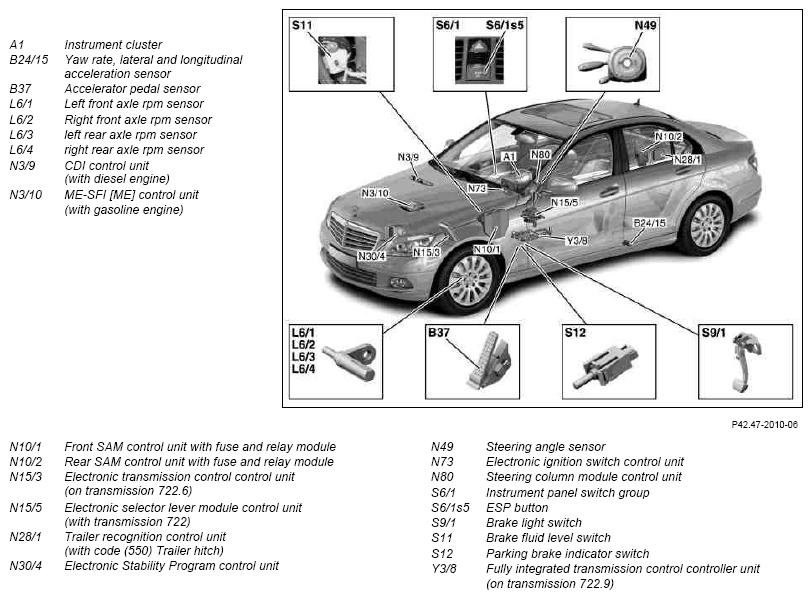

Fig 1: Identifying Adaptive Brake (ABR) Location Of Components

G07533287

Courtesy of MERCEDES-BENZ USA
