Adaptive Brake (ABR) location of components - GF42.47-P-0001-02CE

Implementation dates and validities for Electronic Stability Program control unit (N30/4) (ESP) (Basis variant, with code (233) DISTRONIC PLUS) or Electronic Stability Program control unit (Premium variant, with code (233) DISTRONIC PLUS)

Model 204.0/2 as of 1.3.2011

Model 204.3 as of 1.6.2011

Up to 28.2.2011 only the Basis variant of the Electronic Stability Program control unit will be used in service.

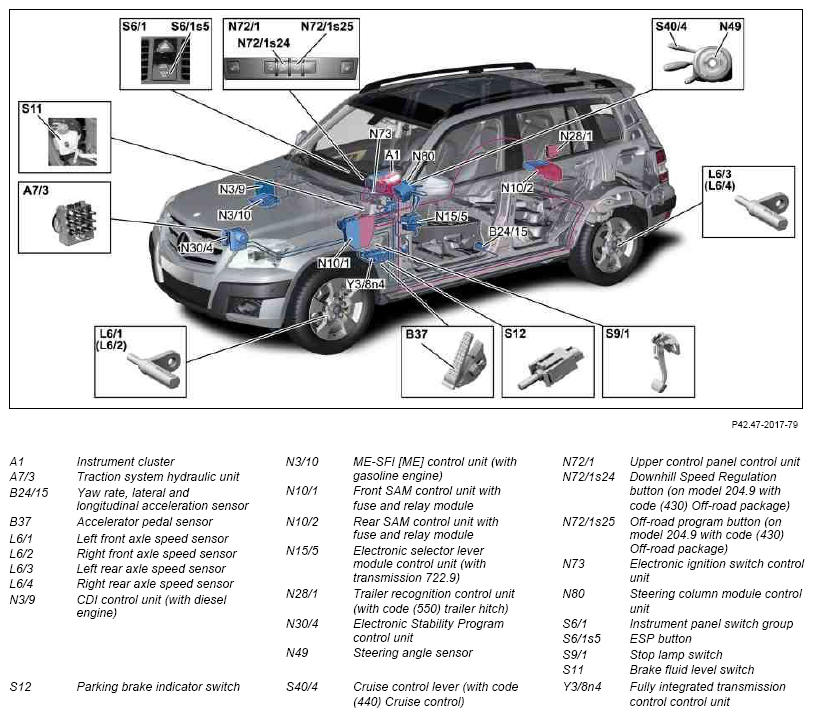

Shown on model 204.9 up to 31.5.10

Fig 1: Identifying Adaptive Brake (ABR) Components Location

Courtesy of MERCEDES-BENZ USA

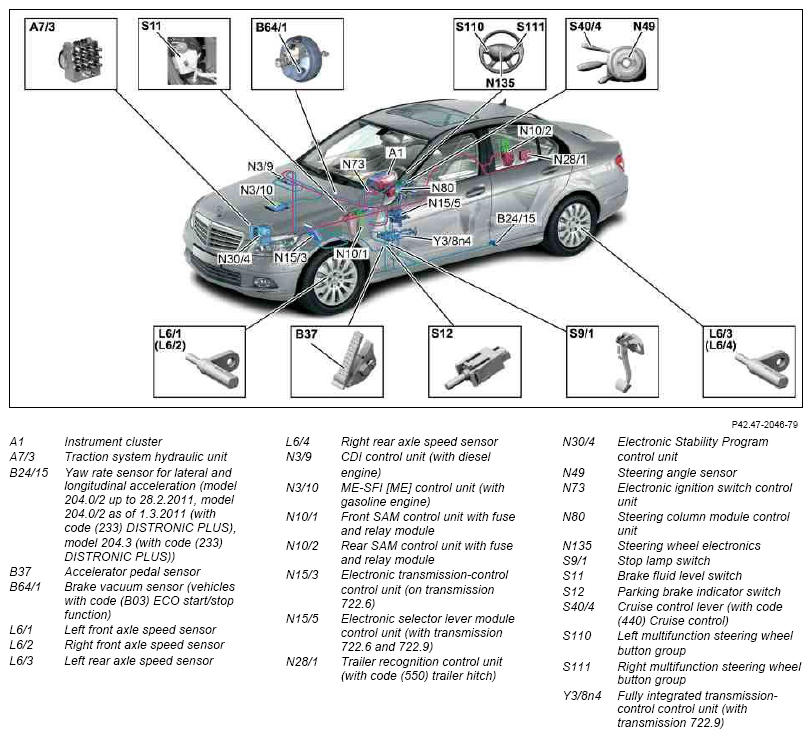

Shown on model 204.0 as of 1.6.10 up to 28.2.2011

Fig 2: Identifying Adaptive Brake (ABR) Components Location

Courtesy of MERCEDES-BENZ USA
