Adaptive Brake (ABR) block diagram - GF42.47-P-0001-03CW

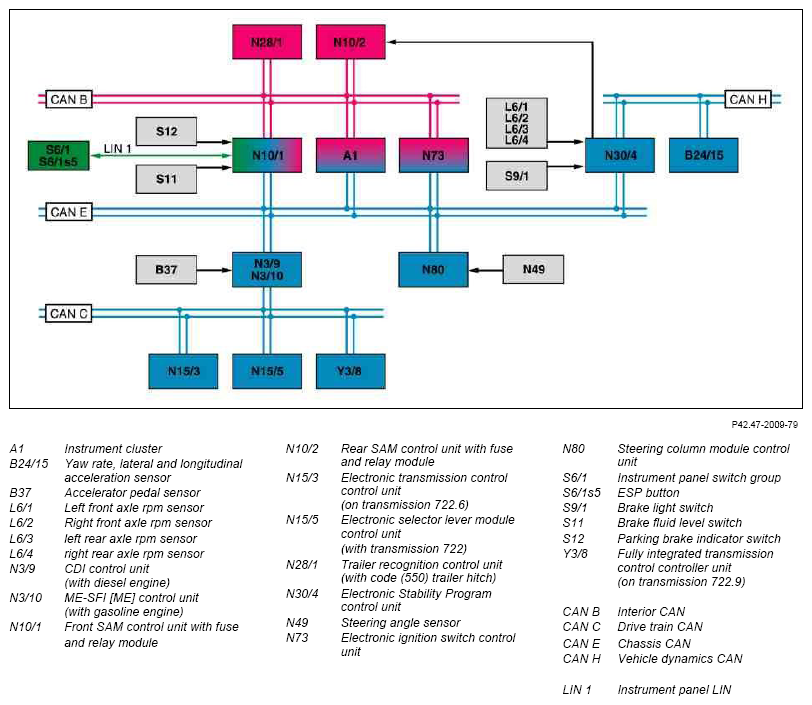

Fig 1: Identifying Adaptive Brake (ABR) Block Diagram

G07533290

Courtesy of MERCEDES-BENZ USA
