Adaptive Brake (ABR) block diagram - GF42.47-P-0001-03CE
Implementation dates and validities for Electronic Stability Program control unit (N30/4) (ESP) (Basis variant, with code (233) DISTRONIC PLUS) or Electronic Stability Program control unit (Premium variant, with code (233) DISTRONIC PLUS)
Model 204.0/2 as of 1.3.2011
Model 204.3 as of 1.6.2011
Up to 28.2.2011 only the Basis variant of the Electronic Stability Program control unit will be used in service.

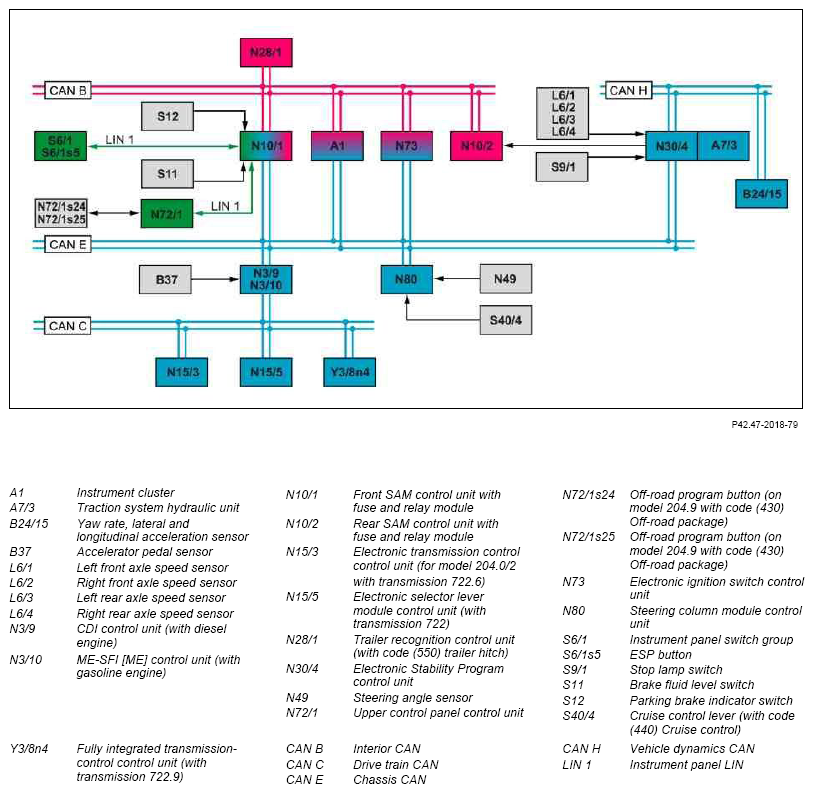

Shown on model 204.0/2 up to 31.5.10, model 204.9

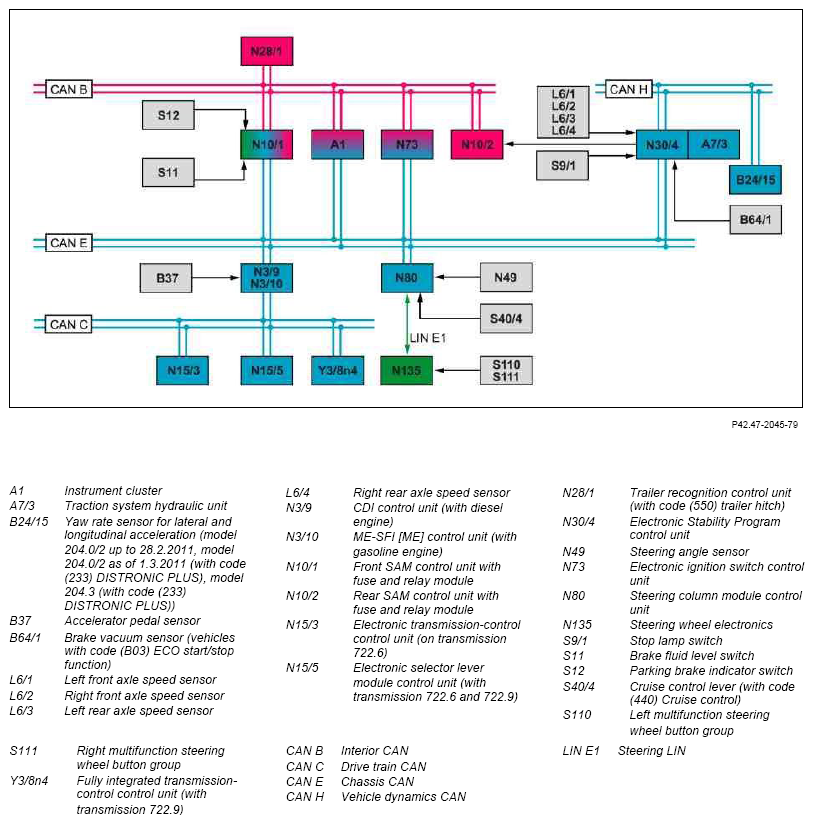

Shown on model 204.0/2 as of 1.6.10, model 204.3
