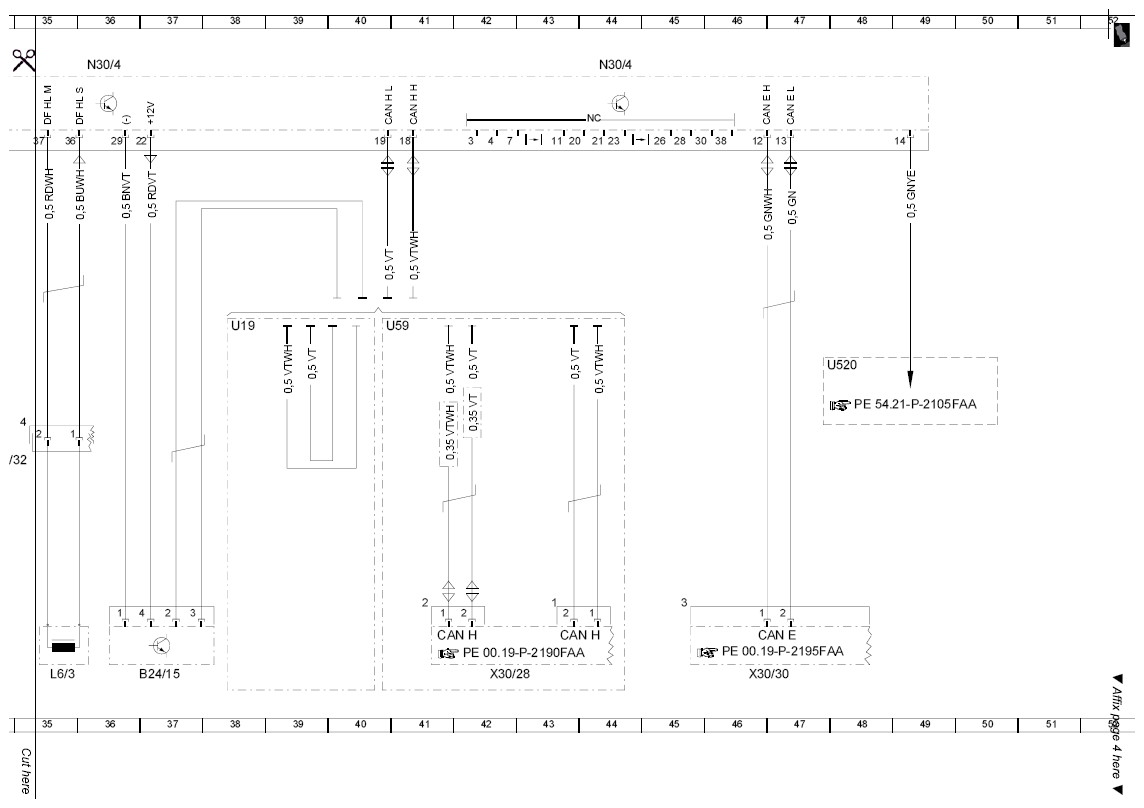

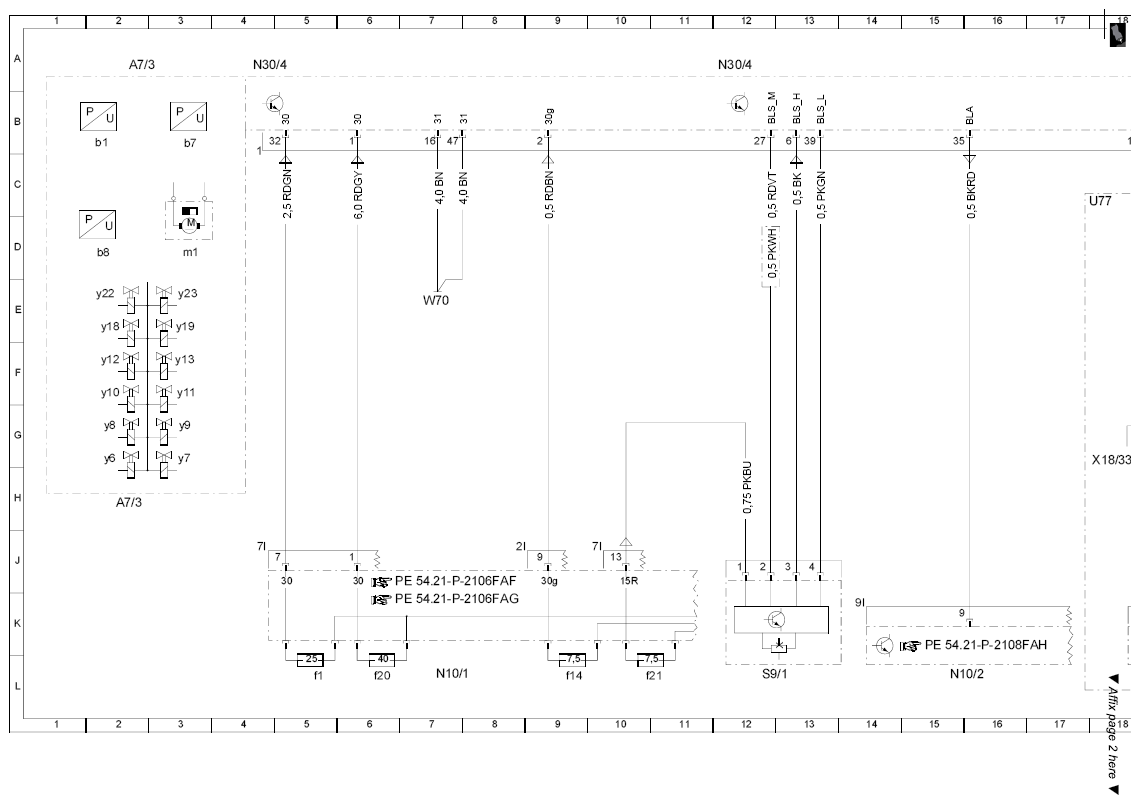

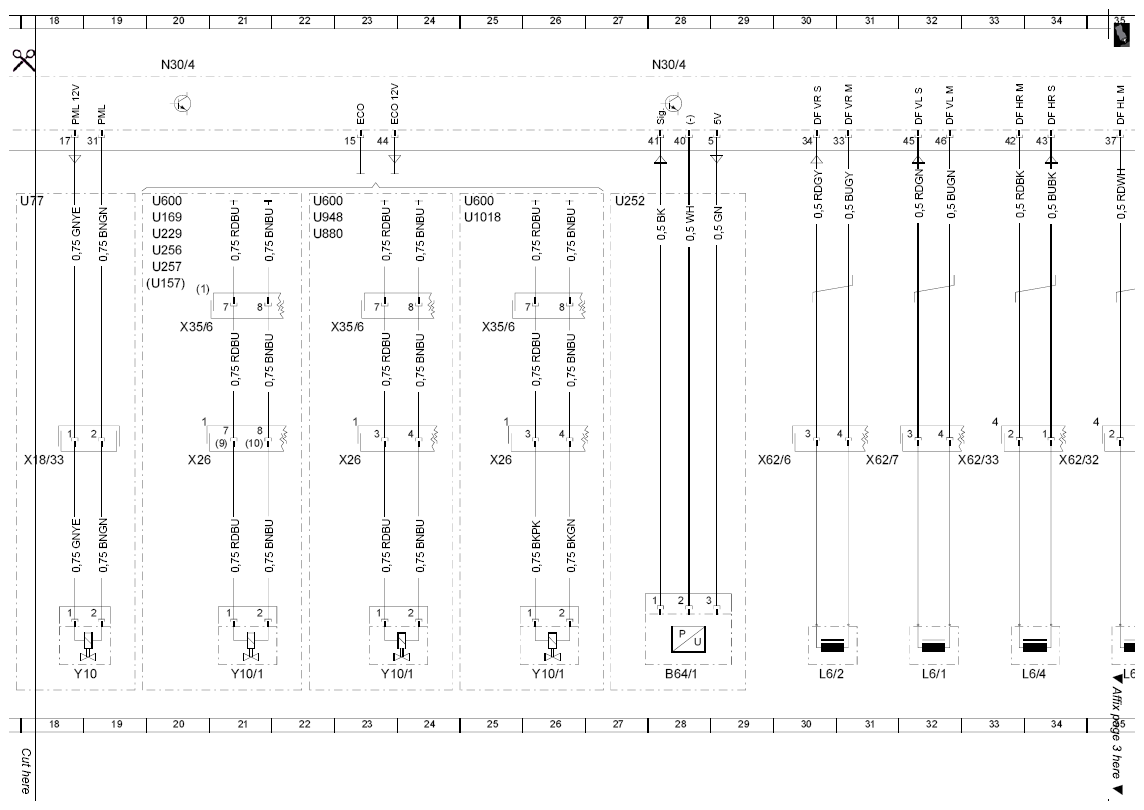

Wiring diagram for Adaptive Brake (ABR) - PE42.47-P-2000-99FAA
MODEL 204.0 /2 up to 28.2.11 control unit A7/3 and N30/4 MODEL 204.9 up to 31.5.11 control unit A7/3 and N30/4
| Code: | Designation: | Position |
|---|---|---|

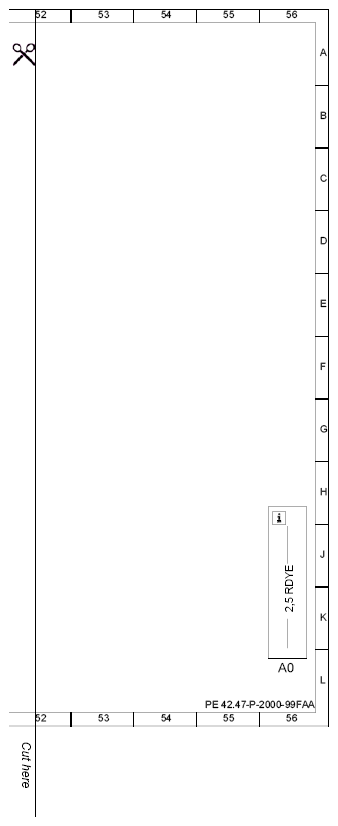

| AO | Explanation of color codes | 48L |
| A7/3 | Traction system hydraulic unit | 2H |
| A7/3 | Traction system hydraulic unit | 2A |
| A7/3b1 | Front axle brake pressure sensor | 1B |
| A7/3b7 | Front pressure sensor | 3B |
| A7/3b8 | Rear pressure sensor | 1D |
| A7/3m1 | High pressure and return pump | 3D |
| A7/3y10 | Left rear pressure regulator valve (pressure hold) | 1F |
| A7/3y11 | Left rear pressure regulator valve (pressure release) | 3F |
| A7/3y12 | Right rear pressure regulator valve (pressure hold) | 1F |
| A7/3y13 | Right rear pressure regulator valve (pressure release) | 3F |
| A7/3y18 | Front axle switchover valve | 1E |
| A7/3y19 | Rear axle switchover valve | 3E |
| A7/3y22 | Front axle intake ball valve | 1E |
| A7/3y23 | Rear axle intake ball valve | 3E |
| A7/3y6 | Left front pressure regulator valve (pressure hold) | 2H |
| A7/3y7 | Left front pressure regulator valve (pressure release) | 3H |
| A7/3y8 | Right front pressure regulator valve (pressure hold) | 2G |
| A7/3y9 | Right front pressure regulator valve (pressure release) | 3G |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 27L |
| CAN E | Chassis CAN | 38K |
| CAN H | Vehicle dynamics CAN | 32K |
| CAN H | Vehicle dynamics CAN | 34K |
| L6/1 | Left front axle rpm sensor | 22L |
| L6/2 | Right front axle rpm sensor | 20L |
| L6/3 | Left rear axle rpm sensor | 25L |
| L6/4 | Right rear axle rpm sensor | 24L |
| N10/1 | Front SAM control module with fuse and relay module | 7L |
| N10/1 f1 | Fuse 1 | 5L |
| N10/1A4 | Fuse 14 | 9L |
| N10/1f20 | Fuse 20 | 6L |
| N10/1f21 | Fuse 21 | 10L |
| N10/2 | Rear SAM control module with fuse and relay module | 15L |
| N30/4 | Electronic Stability Program control unit | 4A |
| N30/4 | Electronic Stability Program control unit | 12A |
| N30/4 | Electronic Stability Program control unit | 20A |
| N30/4 | Electronic Stability Program control unit | 28A |
| N30/4 | Electronic Stability Program control unit | 36A |
| S9/1 | Stop lamp switch | 12L |
| U131 | Valid for ESP with further vehicle dynamics CAN special equipment | 31E |
| U19 | Valid for standard equipment | 28E |
| U520 | Valid for taxi | 39F |
| U77 | Valid for speed-sensitive power steering | 17E |
| W70 | Electronic Stability Program ground point | 7E |
| X18/33 | Speed-sensitive power steering electrical connector | 18H |
| X30/28 | Vehicle dynamics CAN voltage distributor electrical connector | 32L |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 38L |
| X62/32 | Rear axle electrical connector, left distributor | 24H |
| X62/33 | Rear axle electrical connector, right distributor | 23H |
| X62/6 | Front axle electrical connector, right distributor | 20H |
| X62/7 | Front axle electrical connector, left distributor | 21H |
| Y10 | Speed-sensitive power steering solenoid valve | 18L |
