Remove/install left or right rear axle speed sensor - AR42.40-P-0820CW
MODEL 204
| Remove/install | |||
|---|---|---|---|
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 |
Remove rear wheel Remove/install wheels | AP40.10-P-4050CW | |

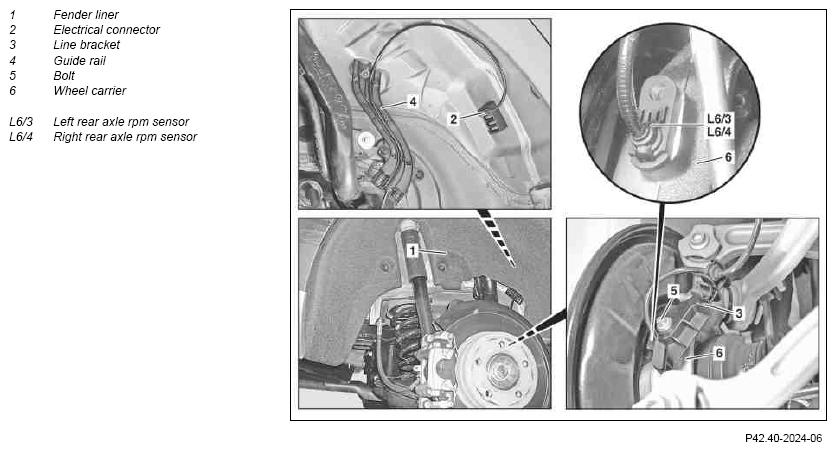

| 2 | Remove fender liner (1) from rear fender | ||
| 3 | Separate electrical connector (2) on rpm sensor (L6/3 or L6/4) | ||
| 4 | Unclip electrical feed line from rpm sensor (L6/3 or L6/4) from line holder (3) and guide rail (4) | ||
| 5 | Unscrew bolt (5) and pull rpm sensor (L6/3 or L6/4) out of wheel carrier (6) | ||
| 6 | Install in the reverse order | ||
| 7 | Read out fault memory with STAR DIAGNOSIS and erase if necessary |
