Detach/mount connector - AR42.45-P-0820-02CW

MODEL 204, 172

Shown on model 204

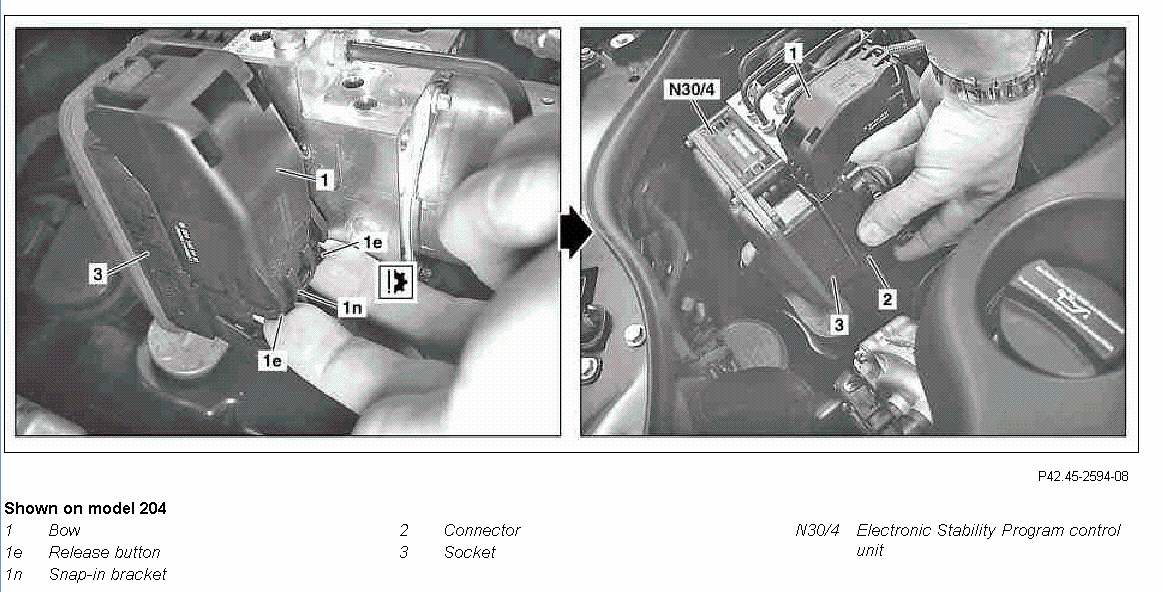

Fig 1: Identifying ESP Control Unit Connector

Courtesy of MERCEDES-BENZ USA

Disconnect electrical connector

If the bracket (1), connector (2) or connector locking mechanism is damaged, it is essential to replace the damaged parts. The connector (2) can otherwise become detached from the Electronic Stability Program control unit (N30/4).

Remove cap of connector
Open the connector locking mechanism; to do this, press both release buttons (1e) carefully from the bottom upwards.
NOTE: Do not use tools. Do not open the snap-in bracket (1n).
Swivel bracket (1) upwards approx. 90°.
NOTE: The connector (2) is pushed slightly out of the jack (3) on the Electronic Stability Program control unit (N30/4).
Pull connector (2) out of the jack (3).
When doing so, do not grip the connector (2) by the bracket (1). The bracket (1) and connector locking mechanism can otherwise be damaged.
Swivel bracket (1) downwards until the connector locking mechanism latches.

Connect electrical connector

Open the connector locking mechanism; to do this, press both release buttons (1e) carefully from the bottom upwards.
NOTE: Do not use tools. Do not open the snap-in bracket (1n).
Swivel bracket (1) upwards approx. 90°.
Insert connector (2) into jack (3) on Electronic Stability Program control unit (N30/4) until connector makes contact evenly along its entire length with base of jack (3).
When doing so, do not grip the connector (2) by the bracket (1). The bracket (1) and connector locking mechanism can otherwise be damaged.
Swivel bracket (1) downwards until the connector locking mechanism latches.
NOTE: The connector (2) is drawn into its end position and locked.
Attach cap of connector.
