Remove/install rear door lining - AR72.12-P-1010CW

MODEL 204, 212

Shown on model 204.0

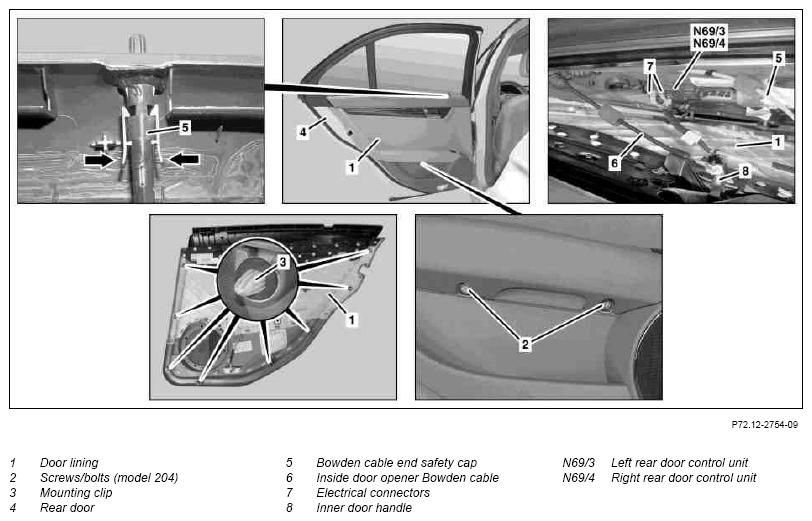

Fig 1: Identifying Rear Door Lining Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Model 212

Fig 2: Identifying Rear Door Lining Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Remove bolts (2)	Model 204.0/2
1.2	Unclip covers and unscrew bolts (2)	Model 204.9
1.3	Unclip cover (10) with assembly wedge (9) and unscrew bolts (11)	Model 212	Fig 3
2	Unclip door lining (1) from mounting clips (3)	Move assembly wedge directly to mounting clips (3) and ensure that the retaining tabs on the mounting clips (3) do not tear out of the door lining (1).	Fig 3
3	Detach door lining (1) from rear door (4) horizontally to side until electrical connectors (7) on left rear door control unit (N69/3), right rear door control unit (N69/4), inside door opener Bowden cable (6) and Bowden cable end safety cap (5) are accessible.	Carefully detach door lining (1). Danger of breaking mount on Bowden cable end safety cap (5). Installation  : Ensure that door lining (1) is seated correctly in inner sealing rails.
4	Press shackles together (arrows) and unclip Bowden cable end safety cap (5) from door lining (1)
5	Disconnect electrical connectors (7) from left rear door control unit (N69/3) and right rear door control unit (N69/4)
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
6	Unhook inside door opener Bowden cable (6) from inner door handle (8).
7	Disconnect electrical connector on left rear door sound system tweeter or right rear door sound system tweeter	Model 212 with code (810) Sound system
8	Install in the reverse order

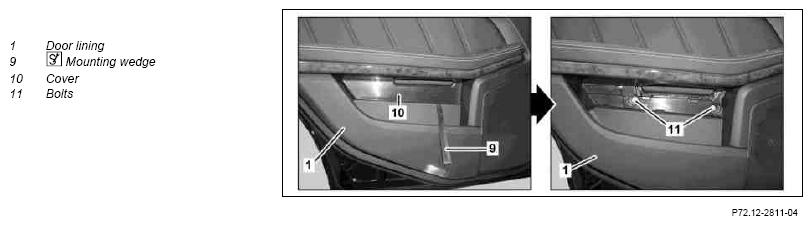

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
