Adjust rear door - AR72.12-P-0650CW

MODEL 204

MODEL 212.0 except CODE (Z04) Light armoring

MODEL 212.1

MODEL 212.2

MODEL 218.3

Shown on model 204.0 without code (299) PRE-SAFE

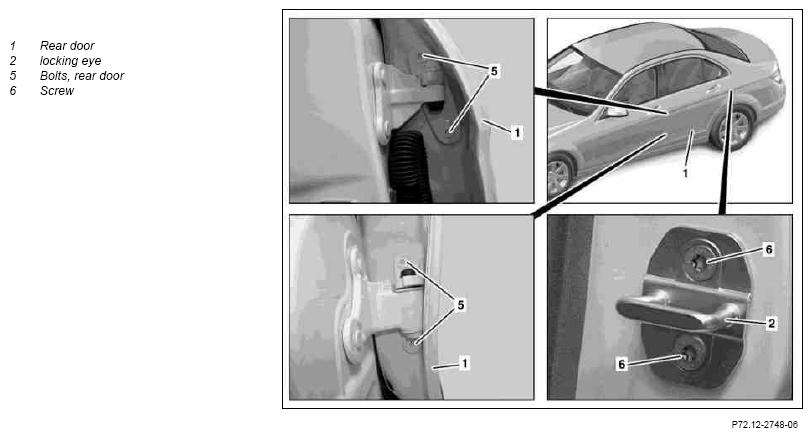

Fig 1: Identifying Rear Door Components

Courtesy of MERCEDES-BENZ USA

Shown on model 204.0

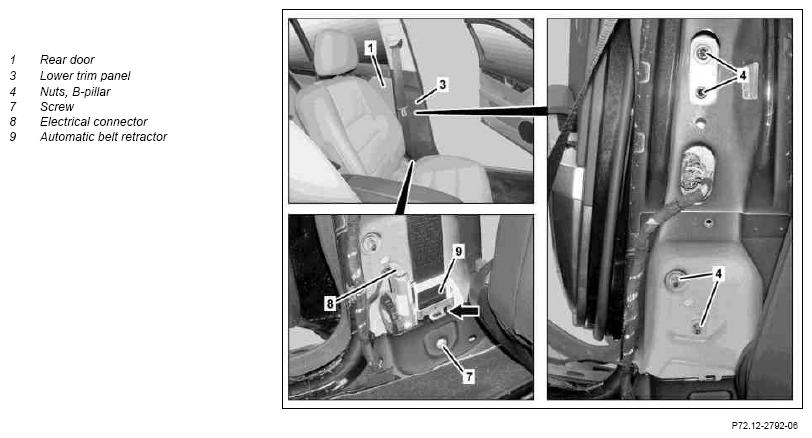

Fig 2: Identifying Rear Door Components

Courtesy of MERCEDES-BENZ USA

Model 204.9

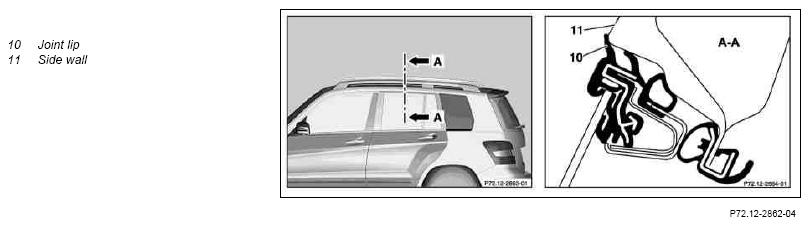

Fig 3: Identifying Rear Door Components

Courtesy of MERCEDES-BENZ USA

	Checking
Danger!	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Check gap dimensions at rear door (1)	Feeler gauge	Fig 4
		Gaps on hoods, doors and covers: Model 204.0/2	AR60.00-P-0700-01CW
		Model 204.9	AR60.00-P-0700-01WX
		Model 212	AR60.00-P-0700-01EW
		Gap dimensions "H, J, K, W"	*BE60.00-P-1002-01U
		Model 218	AR60.00-P-0700-01EL
		Gap dimensions "F, I"	*BE60.00-P-1002-01O
2	Check upper gap lip (10) on side wall (11)	Model 204.9 The joint lip (10) must make contact with the top of the side wall (11) when the rear door (1) is closed.
	Removing
3	Switch off ignition and remove transmitter key or KEYLESS-GO stop/start button from the EIS (EZS) control unit	KEYLESS-GO start/stop button only on vehicles with code (889) Keyless-Go.
4	Remove locking eye (2)	Mark installation position of lock striker (2) to facilitate installation.
5.1	Remove lower trim (3) on B-pillar
5.2	Remove upper paneling from B-pillar and lay down to side	Model 218 Do not remove seat belt from upper B-pillar paneling.
6	Remove screw/bolt (7) at automatic belt retractor (9)	On model 204.9, 212, 218 or on model 204.0/2 with code (299) PRE-SAFE On model 204 with code (299) PRE-SAFE and on model 212, 218 unscrew two bolts (7)
7	Route automatic belt retractor (9) upward out of retaining tab (arrow) on B-pillar.	On model 204.9, 212, 218 or on model 204.0/2 with code (299) PRE-SAFE Do not disconnect electrical connector (8), if necessary expose wiring harness. Do not disconnect PRE-SAFE electrical connectors on vehicles with code (299) PRE-SAFE. Ensure that seat belt does not roll up.
	Adjust
8	Loosen B-pillar nuts (4) and adjust corresponding gap dimensions by moving rear door (1).	On model 204.0/2 without code (299) PRE-SAFE pull seat belt to side to loosen lower B-pillar nut (4).
		Feeler gauge	Fig 4
		Gaps on hoods, doors and covers:
		Model 204.0/2	AR60.00-P-0700-01CW
		Model 204.9	AR60.00-P-0700-01WX
		Model 212	AR60.00-P-0700-01EW
		Gap dimensions "H, J, K, W"	*BE60.00-P-1002-01U
		Model 218	AR60.00-P-0700-01EL
		Gap dimensions "F, I"	*BE60.00-P-1002-01O
9	Tighten B-pillar nuts (4).	Model 204, 212	*BA72.12-P-1002-01O
		Model 218	*BA72.12-P-1004-01J
10	Loosen rear door bolts (5) on inner door panel and adjust transition from rear door to front door (1) by moving rear door (1)	The contour of the front door (1) must be flush with the contour of the rear door or project by a maximum of 1 mm.
11	Move rear door (1) until joint lip (10) makes contact with side wall (11) at top in front area.t	Model 204.9
12	Tighten bolts on rear door (5).	Model 204, 212	*BA72.12-P-1001-01O
		Model 218	*BA72.12-P-1003-01J
13	Insert lock striker (2) and screw in bolts (6) up to stop	It should still be possible to adjust the lock striker (2).
14	Adjust transition between rear door (1), rear fender and roof paneling by moving lock striker (2).	The contour of the rear door (1) must be flush with the contours of the rear fender and roof paneling or project by a maximum of 1 mm
15	Move striker eye (2) until joint lip (10) makes contact with side wall (11) at top in rear area.	Model 204.9
16	Tighten bolts (6)	Model 204, 212	*BA72.12-P-1004-01O
		Model 218	*BA72.12-P-1010-01J
	Install
17	Insert automatic belt retractor (9) into retaining tab (arrow) on B-pillar	On model 204.9, 212, 218 or on model 204.0/2 with code (299) PRE-SAFE
18	Tighten bolt (7) on automatic belt retractor (9)	On model 204.9, 212, 218 or on model 204.0/2 with code (299) PRE-SAFE
		If necessary, fasten wiring harness.
		On model 204 with code (299) PRE-SAFE and model 212, 218 tighten two bolts (7).
		Model 204	*BA91.40-P-1001-01P
		Model 212, 218	*BA91.40-P-1001-01Q
19.1	Install upper paneling on B-pillar Model 218	Ensure that seat belt is routed correctly.
19.2	Remove bottom section (3) from B-pillar.
20	Repair paint damage on screw heads on rear door (5).
Danger!	Risk of explosion  and poisoning caused by solvent vapors and gasses. Risk of injury  to skin and eyes when working with anticorrosion agents	Never spray anticorrosion agents on flames or glowing hot objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A
21	Protect rear door (1) and B-pillar in area of upper door hinge and lower door hinge against corrosion; remove excessive wax.	Wax preservative, aerosol	*BR00.45-Z-1018-05A

Fig 4: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA
