Power windows (PW), location of components - GF72.29-P-0003-01CW

MODEL 204.0 /2 up to Model Year 8

Illustrated on model 204.0

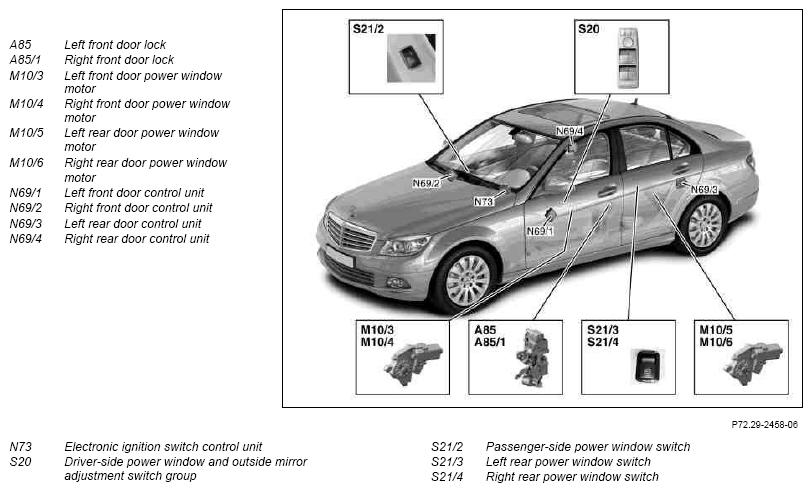

Fig 1: Identifying Power Windows Components Location

Courtesy of MERCEDES-BENZ USA
