Power window (PW), block diagram - GF72.29-P-0003-03CW

MODEL 204.0 /2 up to Model Year 8

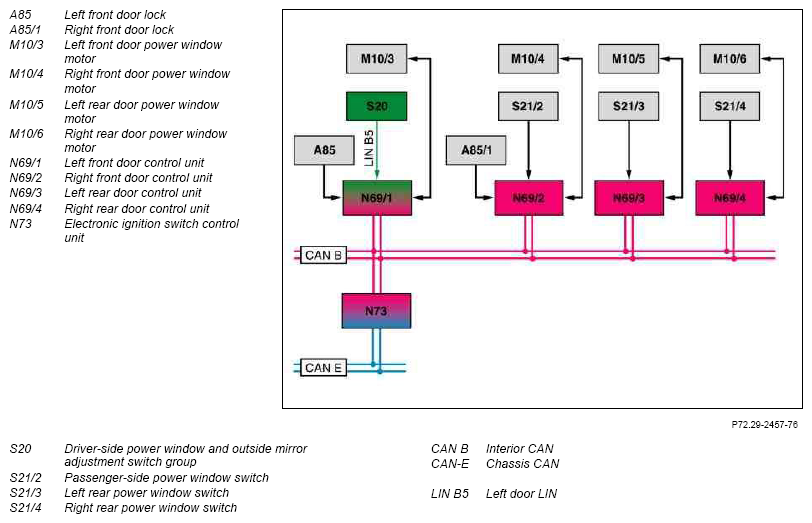

Fig 1: Identifying Power Window Block Diagram
G07531733Courtesy of MERCEDES-BENZ USA
