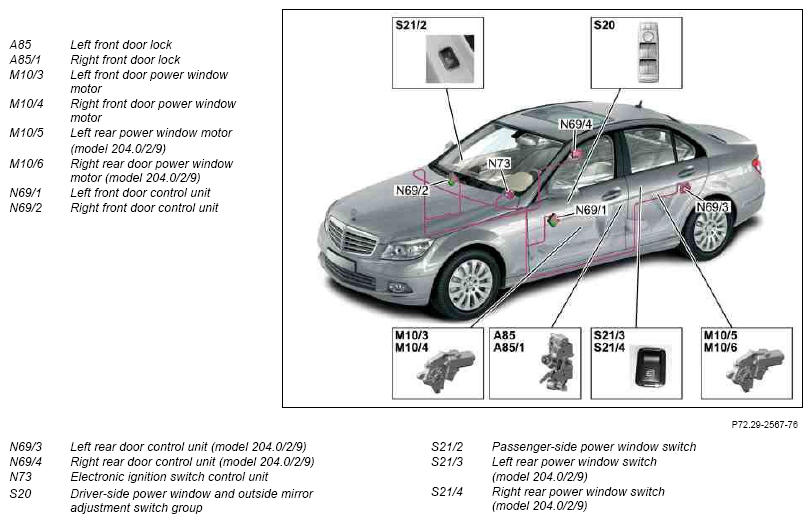

Overview of system components for power windows (PW) (MODEL 204 as of model year 2009/YoM 08) - GF72.29-P-9997CE
MODEL 204 as of model year 2009/YoM 08
Shown on model 204.0 up to 28.2.11
| Component description for left front door control unit | N69/1 | GF72.29-P-6001CE |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009CE |
| Component description for rear door control unit | N69/3, N69/4 In model 204.0/2/9 |
GF72.29-P-6021CE |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001CE |
| Table of contents, function description for power windows (PW) | GF72.29-P-0998CE |
