| A0 |
Color code key |
64L |
| A63 |
Trailer hitch release |
28L |
| A63 |
Trailer hitch release |
59L |
| A63x1 |
Trailer hitch lock electrical connector |
26J |
| A63x1 |
Trailer hitch lock electrical connector |
58J |
| CAN B |
Interior CAN |
12K |
| CAN B |
Interior CAN |
44K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
5L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
38L |
| N10/2f53 |
Fuse 53 |
8L |
| N10/2f53 |
Fuse 53 |
36L |
| N10/2f54 |
Fuse 54 |
6L |
| N10/2f54 |
Fuse 54 |
34L |
| N10/2f56 |
Fuse 56 |
3L |
| N10/2f56 |
Fuse 56 |
37L |
| N10/2f57 |
Fuse 57 |
4L |
| N10/2f57 |
Fuse 57 |
33L |
| N10/2f58 |
Fuse 58 |
2L |
| N10/2f58 |
Fuse 58 |
32L |
| N10/2f89 |
Fuse 89 |
39L |

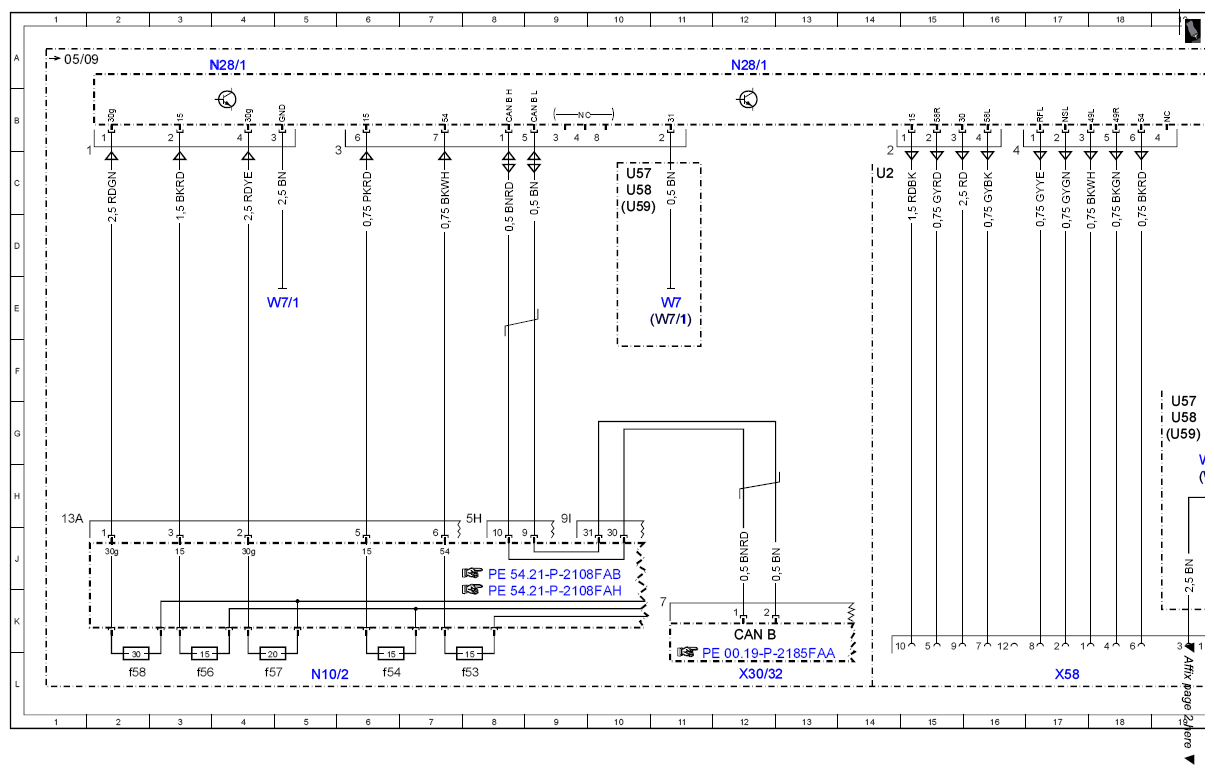

| N28/1 |
Trailer recognition control unit |
12A |
| N28/1 |
Trailer recognition control unit |
4A |
| N28/1 |
Trailer recognition control unit |
20A |
| N28/1 |
Trailer recognition control unit |
27A |
| N28/1 |
Trailer recognition control unit |
36A |
| N28/1 |
Trailer recognition control unit |
45A |
| N28/1 |
Trailer recognition control unit |
53A |
| N28/1 |
Trailer recognition control unit |
61A |

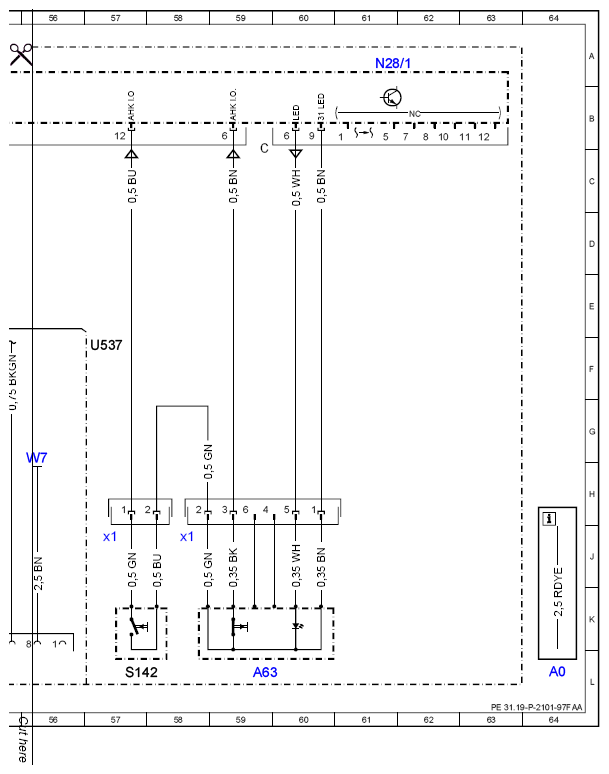

| S142 |
Trailer hitch locking switch |
29L |
| S142 |
Trailer hitch locking switch |
57L |
| S142x1 |
Trailer hitch lock switch electrical connector |
29J |
| S142x1 |
Trailer hitch lock switch electrical connector |
57J |
| U1 |
Valid for USA |
20C |
| U1 |
Valid for USA |
53F |
| U2 |
Valid for all except USA |
14C |
| U2 |
Valid for all except USA |
46F |
| U537 |
Valid for swiveling trailer hitch |
26C |
| U537 |
Valid for swiveling trailer hitch |
57F |
| U57 |
Valid for model 204.2 |
19G |
| U57 |
Valid for model 204.2 |
10C |
| U57 |
Valid for model 204.2 |
36C |
| U57 |
Valid for model 204.2 |
37C |
| U57 |
Valid for model 204.2 |
52G |
| U58 |
Valid for model 204.0 |
19G |
| U58 |
Valid for model 204.0 |
25G |
| U58 |
Valid for model 204.0 |
10C |
| U58 |
Valid for model 204.0 |
36C |
| U58 |
Valid for model 204.0 |
37C |
| U58 |
Valid for model 204.0 |
52G |
| U59 |
Valid for model 204.9 |
19G |
| U59 |
Valid for model 204.9 |
25G |
| U59 |
Valid for model 204.9 |
10C |
| U59 |
Valid for model 204.9 |
36C |
| U59 |
Valid for model 204.9 |
37C |
| U59 |
Valid for model 204.9 |
52G |
| W7 |
Right wheelhouse trunk ground point |
19H |
| W7 |
Right wheelhouse trunk ground point |
26H |
| W7 |
Right wheelhouse trunk ground point |
11E |
| W7 |
Right wheelhouse trunk ground point |
52H |
| W7 |
Right wheelhouse trunk ground point |
56H |
| W7 |
Right wheelhouse trunk ground point |
37E |
| W7 |
Right wheelhouse trunk ground point |
38E |
| W7/1 |
Right taillamp trunk ground point |
19H |
| W7/1 |
Right taillamp trunk ground point |
26H |
| W7/1 |
Right taillamp trunk ground point |
5E |
| W7/1 |
Right taillamp trunk ground point |
11E |
| W7/1 |
Right taillamp trunk ground point |
37E |
| W7/1 |
Right taillamp trunk ground point |
38E |
| W7/1 |
Right taillamp trunk ground point |
52H |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
12L |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
44L |

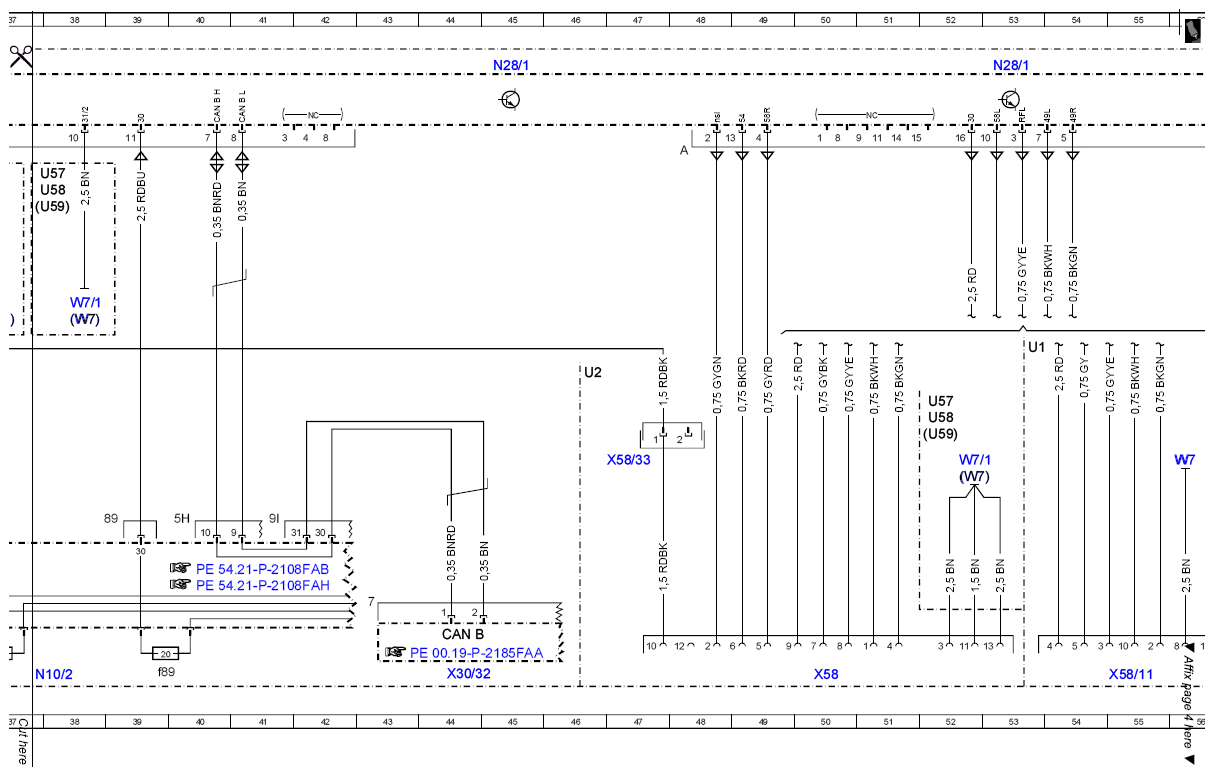

| X58 |
Trailer socket |
17L |
| X58 |
Trailer socket |
50L |

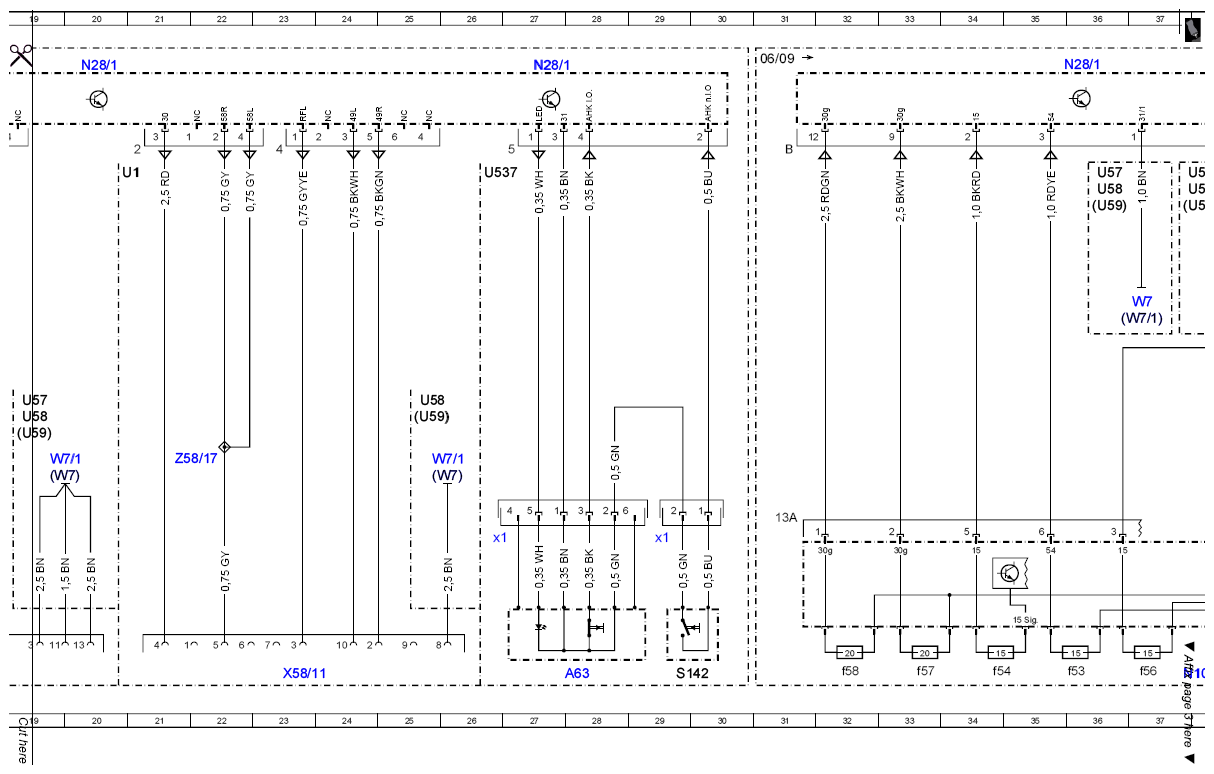

| X58/11 |
Trailer socket (7-pin) |
23L |
| X58/11 |
Trailer socket (7-pin) |
55L |
| X58/33 |
Interior/trailer hitch electrical connector |
47H |
| Z58/17 |
Circuit 58 trailer socket connector sleeve |
22G |
