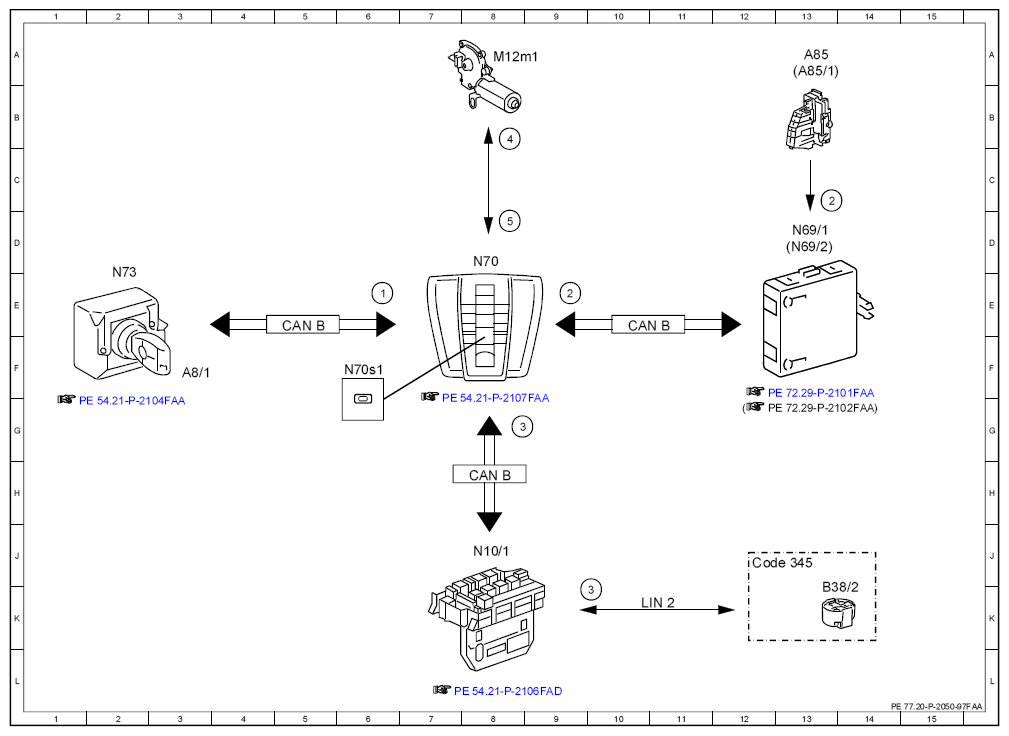

Electrical function schematic for tilting/sliding roof (SHD) - PE77.20-P-2050-97FAA
MODEL 204 with CODE (414) Power glass tilting/sliding roof up to model year 08 /YoM 07
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 6E |
| 2 | Door rotary tumbler switch, status | 9E |
| 2 | Door rotary tumbler switch, status | 13C |
| 3 | Rain/light sensor, status | 8G |
| 3 | Rain/light sensor, status | 10K |
| 4 | Tilting/sliding roof motor, actuation | 8B |
| 5 | Tilting/sliding roof motor, signal | 8D |
| A8/1 | Transmitter key | 3F |
| A85 | Left front door lock | 13A |
| A85/1 | Right front door lock | 13A |
| B38/2 | Rain/light sensor | 13K |
| CANB | Interior CAN | 10E |
| CANB | Interior CAN | 5E |
| CANB | Interior CAN | 8H |
| Code 345 | Rain sensor | 13J |
| LIN 2 | Wiper/inside rearview mirror LIN | 11K |
| M12m1 | Tilting/sliding roof motor | 8A |
| N10/1 | Front SAM control unit with fuse and relay module | 8J |
| N69/1 | Left front door control unit | 13D |
| N69/2 | Right front door control unit | 13D |
| N70 | Overhead control panel control unit | 8D |
| N70s1 | Tilting/sliding roof switch | 6F |
| N73 | Electronic ignition switch control unit | 2E |
