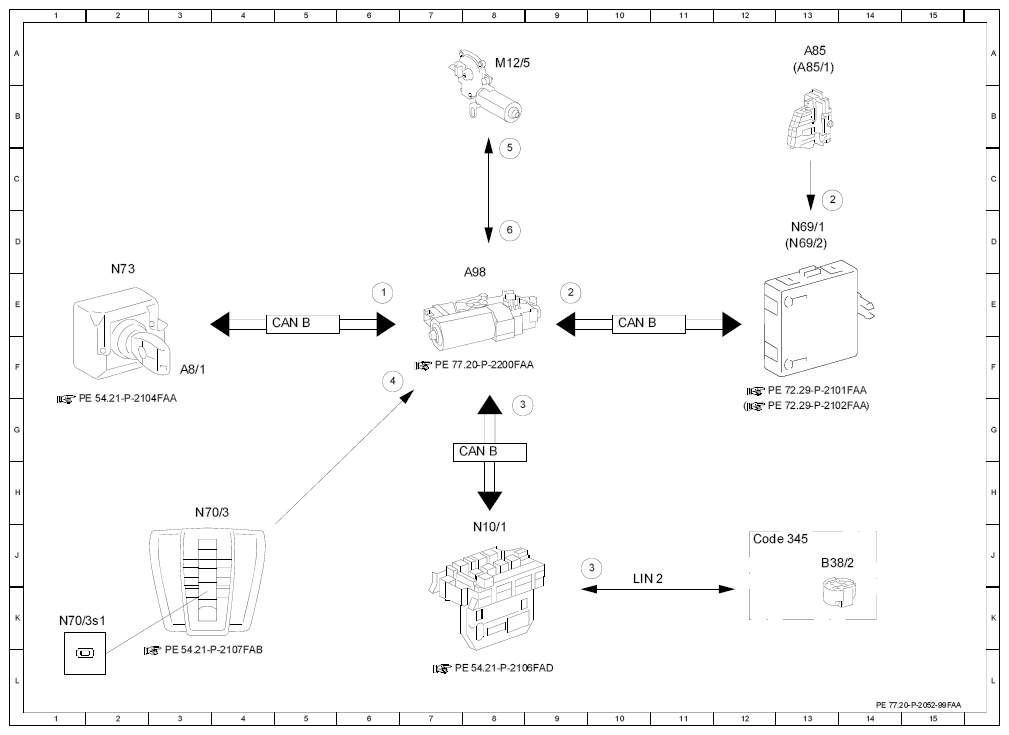

Electrical function schematic for panoramic sliding roof - PE77.20-P-2052-99FAA
MODEL 204 with CODE (413) Panoramic sliding roof up to model year 08 /YoM 07
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 6E |
| 2 | Door rotary tumbler switch, status | 9E |
| 2 | Door rotary tumbler switch, status | 13C |
| 3 | Rain/light sensor, status | 8G |
| 3 | Rain/light sensor, status | 9J |
| 4 | Panoramic sliding roof switch, status | 6F |
| 5 | Panoramic sliding roof roller sun blind drive unit, actuation | 8C |
| 6 | Panoramic sliding roof roller sun blind drive unit, signal | 8D |
| A8/1 | Transmitter key | 3F |
| A85 | Left front door lock | 13A |
| A85/1 | Right front door lock | 13A |
| A98 | Panoramic sliding roof control module | 7E |
| B38/2 | Rain/light sensor | 13J |
| CAN B | Interior CAN | 4E |
| CAN B | Interior CAN | 7H |
| CAN B | Interior CAN | 10E |
| Code 345 | Rain sensor | 12J |
| LIN 2 | Wiper/inside rearview mirror LIN | 10K |
| M12/5 | Panoramic sliding roof roller sun blind drive unit | 8A |
| N10/1 | Front SAM control unit with fuse and relay module | 8J |
| N69/1 | Left front door control unit | 13D |
| N69/2 | Right front door control unit | 13D |
| N70/3 | Overhead control panel electronics | 3H |
| N70/3s1 | Panoramic sliding roof switch | 1K |
| N73 | Electronic ignition switch control unit | 2E |
