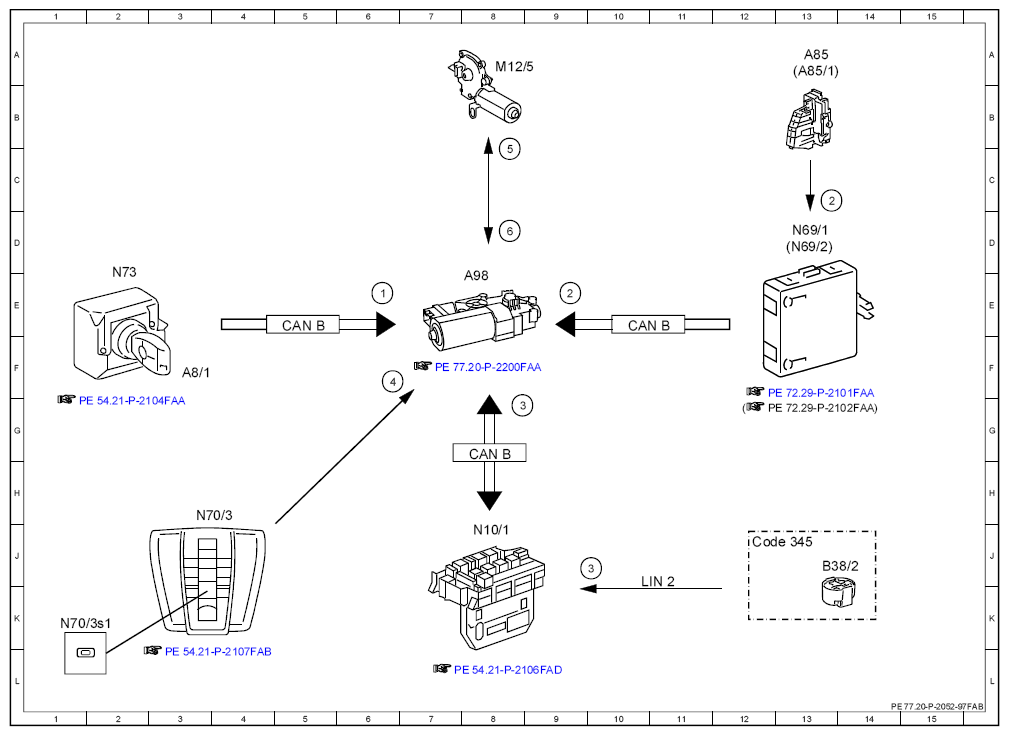

Electrical function schematic for panoramic sliding roof - PE77.20-P-2052-97FAB
MODEL 204.0 /2 with CODE (413) Panoramic glass roof with top sliding roof as of model year 2009 /YoM 08
MODEL 204.3 with CODE (413) Panoramic glass roof with top sliding roof
MODEL 204.9 with CODE (413) Panoramic glass roof with top sl
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 6E |
| 2 | Door rotary tumbler switch, status | 9E |
| 2 | Door rotary tumbler switch, status | 13C |
| 3 | Rain/light sensor, status | 8G |
| 3 | Rain/light sensor, status | 10J |
| 4 | Panoramic sliding roof switch, status | 6F |
| 5 | Panoramic sliding roof roller sun blind drive unit, actuation | 8C |
| 6 | Panoramic sliding roof roller sun blind drive unit, signal | 8D |
| A8/1 | Transmitter key | 3F |
| A85 | Left front door lock | 13A |
| A85/1 | Right front door lock | 13A |
| A98 | Panoramic sliding roof control module | 8E |
| B38/2 | Rain/light sensor | 13J |
| CANB | Interior CAN | 5E |
| CANB | Interior CAN | 10E |
| CANB | Interior CAN | 8G |
| Code 345 | Rain sensor | 13J |
| LIN 2 | Wiper/inside rearview mirror LIN | 10J |
| M12/5 | Panoramic sliding roof roller sun blind drive unit | 8A |
| N10/1 | Front SAM control unit with fuse and relay module | 8J |
| N69/1 | Left front door control unit | 13D |
| N69/2 | Right front door control unit | 13D |
| N70/3 | Overhead control panel electronics | 3H |
| N70/3s1 | Panoramic sliding roof switch | 1K |
| N73 | Electronic ignition switch control unit | 2E |
