Remove/install tilting/sliding roof motor - AR77.20-P-3010CW

MODEL 204.0/2, 212, 218 with CODE (414) Power glass tilting/sliding roof

Shown on model 204

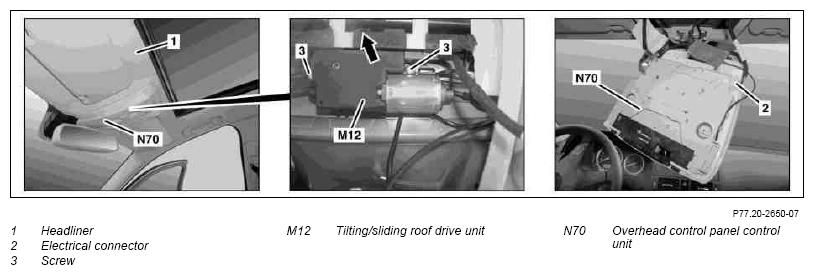

Fig 1: Identifying Tilting/Sliding Roof Motor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unclip overhead control panel control unit (N70) from headliner (1) and allow to dangle with electrical lines still attached		AR82.20-P-1000CW
2	Disconnect electrical connector (2) from overhead control panel control unit (N70)
3	Remove bolts (3, arrow) and remove tilting/sliding roof drive unit (M12) Notes on self-locking nuts and bolts	Installation  : Tilting/sliding roof muss must be closed during installation. Rechargeable drill/screwdriver	AH00.00-N-0001-01A
4	Install in the reverse order
5	Normalize tilting/sliding roof	Close tilting/sliding roof with tilting/sliding roof switch. Continue to hold tilting/sliding roof for min. 1 s in this position. Then move tilting/sliding roof to tilt position "OPEN" until end position is reached. Continue to hold tilting/sliding roof for min. 1 s in this position. Then close tilting/sliding roof.
6	Connect Star Diagnosis, read out fault memory, perform teach-in run for tilting/sliding roof anti-pinch protection		AD00.00-P-2000-04A
