Remove/install panoramic roof wind deflector (MODEL 204.3, 207.3, 212.0 /1 /2)- AR77.21-P-0100EW
MODEL 204.3, 207.3, 212.0 /1 /2 with CODE (413) Panoramic glass roof with top sliding roof
| Remove/install | |||
| Danger! | Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A |

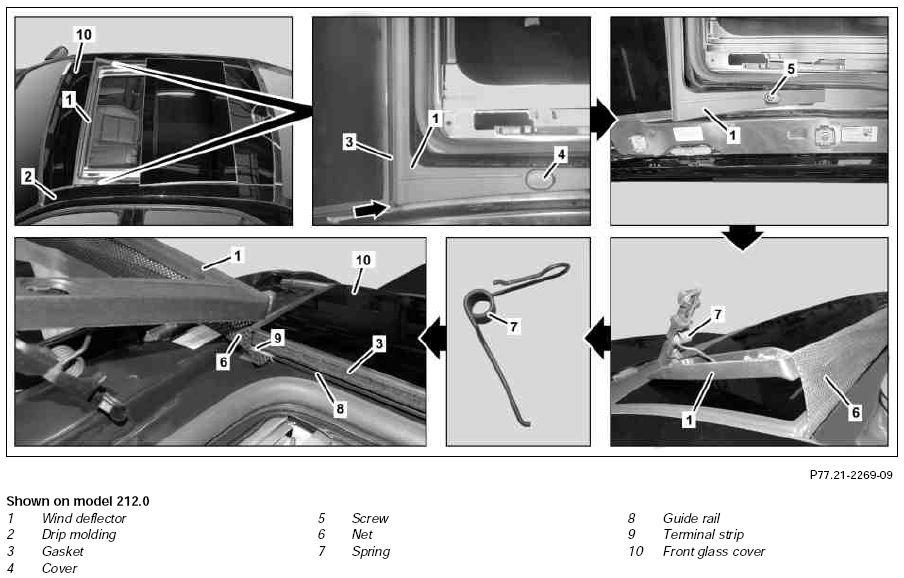

| 1 | Open front glass cover | ||
| 2 | Remove cover (4) and screws (5) | Installation: Pull wind deflector (1) downwards and slide until it lies flush with the seal (3). Then tighten the bolts (5). | |
| 3 | Check seal (3) for front glass cover (10), replace if necessary. | Lay wind deflector (1) down toward rear until seal (3) is accessible. Lubricant, rubber assembly 1 l | BR00.45-Z-1010-06A |
| 4 | Lie wind deflector (1) forwards and remove springs (7) | Only when replacing springs (7). | |
| 5 | Remove left drip rail (2) on panoramic roof | AR88.80-P-4000EW | |
| 6 | Pull the terminal strip (9) found on the mesh (6) of the wind deflector (1) out to the left of the guide rail (8) and remove wind deflector (1) | ||
| 7 | Install in the reverse order |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 l | A 000 989 03 67 |
