Remove/install panoramic roof wind deflector (MODEL 204.0/2/9) - AR77.21-P-0100CW

MODEL 204.0/2/9 with CODE (413) Panoramic sliding roof

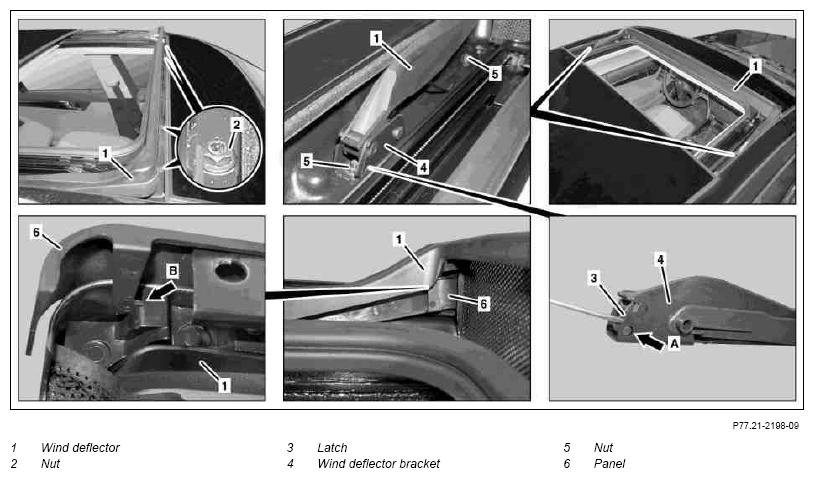

Fig 1: Identifying Wind Deflector, Latch, Panel, Nut And Bracket

Courtesy of MERCEDES-BENZ USA

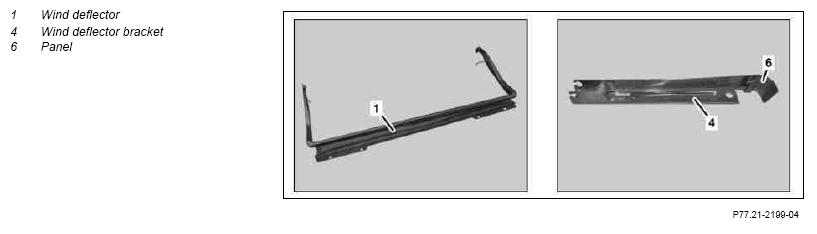

Fig 2: Identifying Wind Deflector, Bracket And Panel

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Completely open front glass roof
2	Unscrew nuts (2)
3	Disengage lock (3) on button (arrows A) with screwdriver and position horizontally	On left and right side of panoramic roof.
4	Remove wind deflector (1) from wind deflector bracket (4) toward front	Installation:  Catch hook on cover (6) should reach into wind deflector (1) (arrow B). For this purpose push catch hook toward front when connecting wind deflector (1) and cover (6).
5	Remove lock (3) from wind deflector bracket (4)	On left and right side of panoramic roof.
6	Unscrew nuts (5) and remove wind deflector bracket (4)	On left and right side of panoramic roof.
7	Install in the reverse order
8	Synchronize panoramic roof and perform teach-in run for panoramic roof Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
