Remove/install drive cable for panoramic roof roller sun blind - AR77.21-P-0230CW

MODEL 204.0/2/9 with CODE (413) Panoramic sliding roof

Shown on model 204.0 on right side of panoramic roof

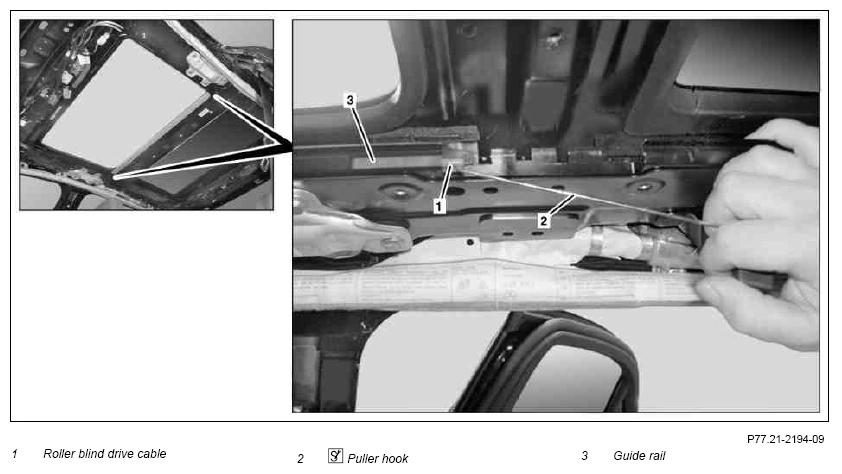

Fig 1: Identifying Drive Cable For Panoramic Roof Roller Sun Blind Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left and right slider on front roller sun blind		AR77.21-P-0222CW
2	Hook extraction hook (2) into roller drive cable driver (1) and pull roller blind drive cable (1) out of guide rail (3)	Always replace roller blind drive cables (1) in pairs.	Fig 2
3	Install in the reverse order

Fig 2: Identifying Pulling Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
