Remove, install rear panoramic glass roof paneling - AR77.21-P-0630EC
MODEL 204.3, 207.3 with CODE (413) Panoramic glass roof with top sliding roof
| Remove/install | |||
| Danger | Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A |

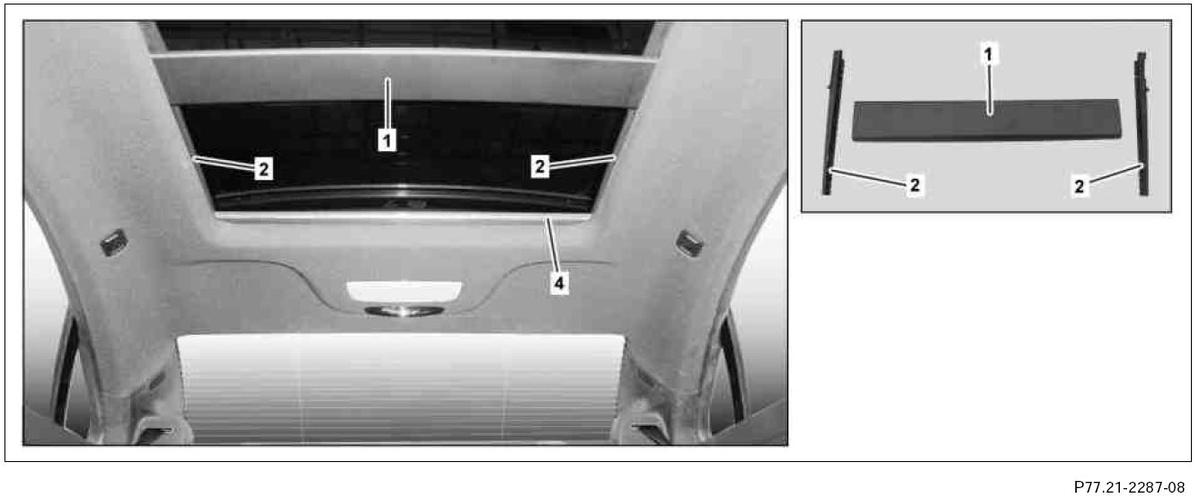

| 1 | Open roller sun blind (4) | ||
| 2 | Loosen cover (1) from roof paneling and remove | Installation: Replace adhesive pads on the inside of cover (1). Assembly wedge: 110 589 03 59 00 |
|
| 3 | Unclip side cover (2) on left and right of panoramic roof frame and take off | Assembly wedge: 110 589 03 59 00 | |
| 4 | Install in the reverse order |
