Install panoramic roof frame - AR77.21-P-0800-04CW

MODEL 242 with CODE 413 (Panoramic glass roof with top sliding roof)

MODEL 246 with CODE 413 (Panoramic glass roof with top sliding roof)

MODEL 204.0/2/9 with CODE 413 (Automatic panoramic sliding sunroof)

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Illustrated on model 204.0

Fig 2: Identifying Panoramic Roof Frame Installing Dimension

Courtesy of MERCEDES-BENZ USA

Install panoramic roof frame (1) within 5 minutes after applying glue to body and align before adhesive force of glue starts to decrease.

Immediately and carefully remove soiling caused by adhesive.

1. Position panoramic roof frame (1) above roof cutout with aid of three helpers, carefully lay onto adhesive bead and lightly press on.

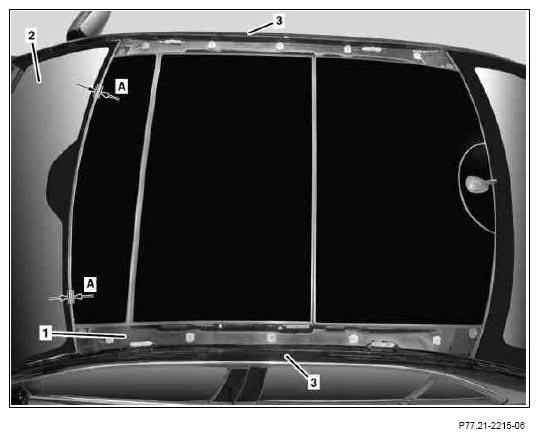

2. Insert feeler gauges adjusted to gap dimension (A) determined before removal between panoramic roof frame (1) and windshield (2).
3. Align panoramic roof frame (1) in relation to windshield (2) and in center between side roof paneling (3).
4. Place suitable loads on panoramic roof frame (1) during curing time of adhesive.

   Use weights with large surface, e.g. sandbags, otherwise the panoramic roof frame (1) can be damaged.

5. Carefully remove cup suction tool.
