Install panoramic rear glass roof - AR77.21-P-0600-06CW

MODEL 242 with CODE 413 (Panoramic glass roof with top sliding roof)

MODEL 246 with CODE 413 (Panoramic glass roof with top sliding roof)

MODEL 204 with CODE 413 (Automatic panoramic sliding sunroof)

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Illustrated on model 204.0

Fig 2: Identifying Panoramic Rear Glass Roof Installing Dimensions

Courtesy of MERCEDES-BENZ USA

Install rear glass cover (1) within 5 min. after applying adhesive to body and align, otherwise adhesion force of glue will be impaired.

Carefully remove contamination caused by adhesive immediately.

1. Position rear glass cover (1) above panoramic roof frame with aid of helper, carefully lay onto adhesive bead and lightly press on.
2. Insert feeler gauges (2) adjusted to the gap dimension (A) determined before removal, between rear glass cover (1) and rear-end window (3) and align rear glass cover (1)..

   On model 204.2/9 the feeler gauges (2) are installed between the rear glass cover (1) and rear roof paneling.

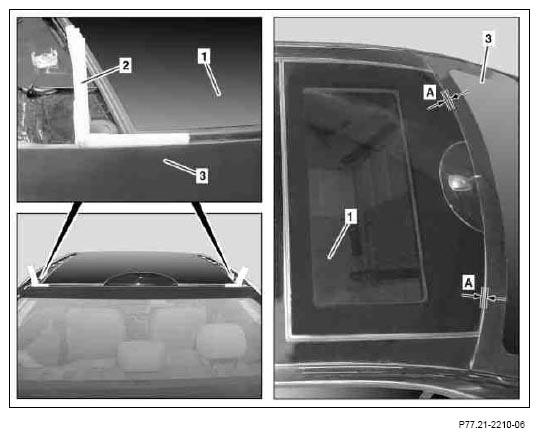

   Fig 3: Identifying Measuring Gap Dimension Between Rear Glass Cover And Rear-End Window

   Courtesy of MERCEDES-BENZ USA

   Illustrated on model 204.0

3. Adjust reference dimension (B) determined before removal on left and right side of panoramic roof between guide rail (4) and guide strip (5) by moving rear glass cover (1) at side.

   Precisely keep reference dimension (B), otherwise the front glass roof is not guided correctly and the panoramic roof can be damaged.

4. Place suitable loads on rear glass cover (1) during curing time of adhesive.

   Use weights with large surface, e.g. sandbags, otherwise the rear glass cover (1) can be damaged.

5. Remove cup suction tool.
