Install front glass cover - AR77.21-P-7010-05CW

MODEL 204.0/2/3/9 with CODE 413 (Automatic panoramic sliding sunroof)

MODEL 242, 246 with CODE 413 (Panoramic glass roof with top sliding roof)

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Shown on model 204

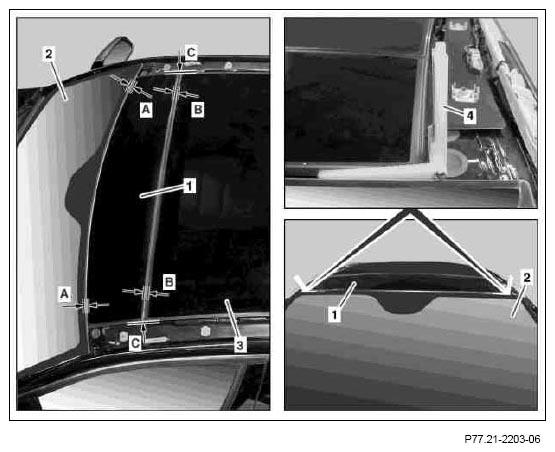

Fig 2: Identifying Front Glass Cover Alignment In Relation To Windshield And Front Glass Roof

Courtesy of MERCEDES-BENZ USA

Insert front glass cover (1) within 5 minutes after applying adhesive to body and align.

Otherwise the adhesive force of the adhesive material may be decreased.

1. Position front glass cover (1) above roof cutout with aid of helper and carefully set down on adhesive bead and press down lightly.
2. Align front glass cover (1) in relation to windshield (2) and front glass roof (3) according to gap dimensions (A, B) determined during removal.
   NOTE: Observe transitions (C). The front glass cover (1) must be flush on the left and right with the glass roof (3).
3. The insert feeler gauges (4) adjusted to gap dimension (A) between front glass cover (1) and windshield (2).
   NOTE: The feeler gauges (4) serve as spacers during the curing time of the adhesive.
4. Carefully remove cup suction tool. Cup suction tool/suspension equipment (for window removal/installation).
5. Place suitable loads on front glass cover (1) during the curing time of the adhesive.
   NOTE: Use weights with large surface such as sandbags. Otherwise the front glass cover (1) can be damaged.
