Apply glue for panoramic roof frame (MODEL 204.2/9) - AR77.21-P-0800-03CX
MODEL 204.2/9 with CODE 413 (Automatic panoramic sliding sunroof)
MODEL 242 with CODE 413 (Panoramic glass roof with top sliding roof)
MODEL 246 with CODE 413 (Panoramic glass roof with top sliding roof)
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1031-02A | Repair kit, installing window 500662 01/03/05/07/09/11 | A 973 670 00 93 |

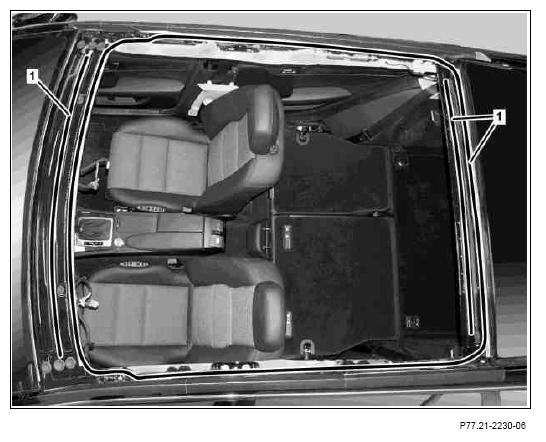

Do not touch bonding surface (1) with bare fingers. The bonding surfaces (1) must be free of dust, oil, grease, wax, dirt residues and other adhesive components, otherwise the adhesive force of the glued connection is impaired.
- Guide application nozzle on bonding surfaces (1) along body flange. Simultaneously apply adhesive bead uniformly with a height of approx. 14 mm and a width of approx. 8 mm.
Electric cartridge gun
Immediately remove contamination caused by adhesive material.
