Apply glue for panoramic roof frame (MODEL 204.0) - AR77.21-P-0800-03CW
MODEL 117, 176 with CODE 413 (Panoramic glass roof with top sliding roof)
MODEL 204.0 with CODE 413 (Panoramic sliding sunroof)
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1031-02A | Repair kit, installing window 500662 01/03/05/07/09/11 | A 973 670 00 93 |

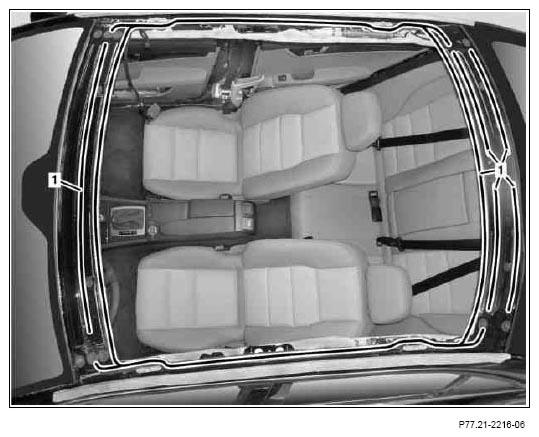

Do not touch bonding surfaces (1) with bare fingers. The bonding surfaces (1) must be free of dust, oil, grease, wax, dirt residues and other adhesive components. Otherwise the strength of the glued connection is not ensured.
- Guide application nozzle on bonding surfaces (1) along body flange. Uniformly apply glue in shape of an adhesive bead at a height of approx. 14 mm and width of approx. 8 cm.
Electric cartridge gun
Immediately remove dirt from glue.
