Electric tilting/sliding roof (SR), location of components - GF77.20-P-0001-01CW

MODEL 204.0 /2 with CODE (414) Power glass tilting/sliding roof up to Model Year 8

Illustrated on model 204.0

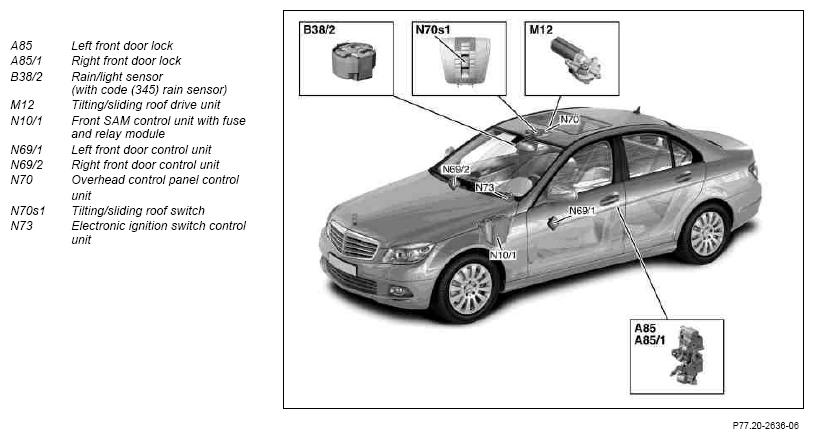

Fig 1: Identifying Electric Tilting/Sliding Roof (SR) Components Location

Courtesy of MERCEDES-BENZ USA
