Electric tilting/sliding roof (SR), block diagram - GF77.20-P-0001-03CW

MODEL 204.0 /2 with CODE (414) Power glass tilting/sliding roof up to Model Year 8

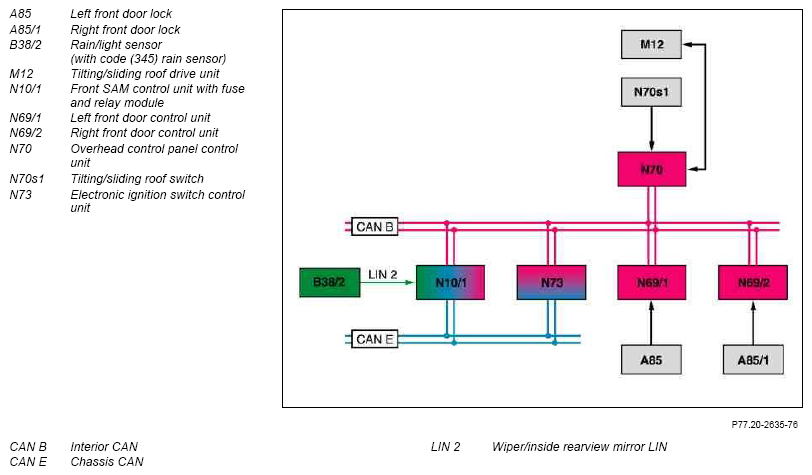

Fig 1: Identifying Electric Tilting/Sliding Roof Block Diagram

Courtesy of MERCEDES-BENZ USA
