Electric panoramic sliding window, location of components - GF77.20-P-0003-01CW

MODEL 204.0 /2 with CODE (413) Panoramic glass roof with top sliding roof up to Model Year 8

Illustrated on model 204.0

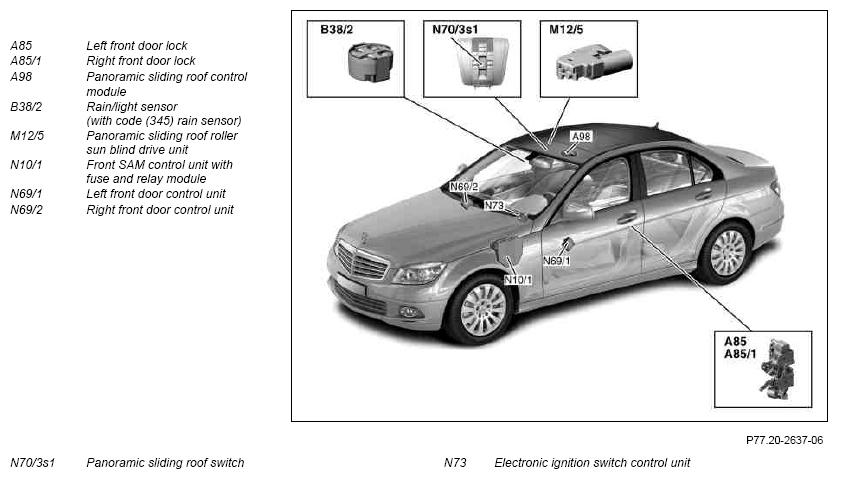

Fig 1: Identifying Electric Panoramic Sliding Window Components Location

Courtesy of MERCEDES-BENZ USA
