Electric panoramic sliding roof, block diagram - GF77.20-P-0003-03CW

MODEL 204.0 /2 with CODE (413) Panoramic glass roof with top sliding roof up to Model Year 8

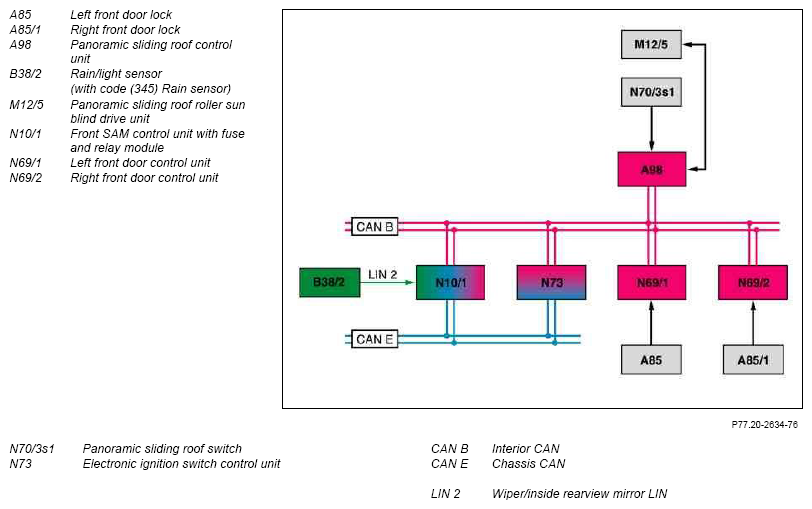

Fig 1: Identifying Electric Panoramic Sliding Roof Block Diagram

Courtesy of MERCEDES-BENZ USA
