| A0 |
Explanation of color codes |
31L |
| CAN B |
Interior CAN |
6K |
| F34 |
Interior fuse box |
3L |
| F34f116 |
Fuse 116 |
1K |
| M20/1 |
Steering column in/out adjustment motor |
12L |
| M20/2 |
Steering column up/down adjustment motor |
10L |
| M27/1 |
Driver seat fore/aft adjustment motor |
23L |
| M27/2 |
Driver seat height adjustment motor |
21L |
| M27/3 |
Driver seat inclination adjustment motor |
19L |
| M27/4 |
Driver seat head restraint adjustment motor |
17L |
| M27/5 |
Driver seat backrest inclination adjustment motor |
15L |
| M27/5x1 |
Seat backrest inclination adjustment motor electrical connector, driver seat |
15J |

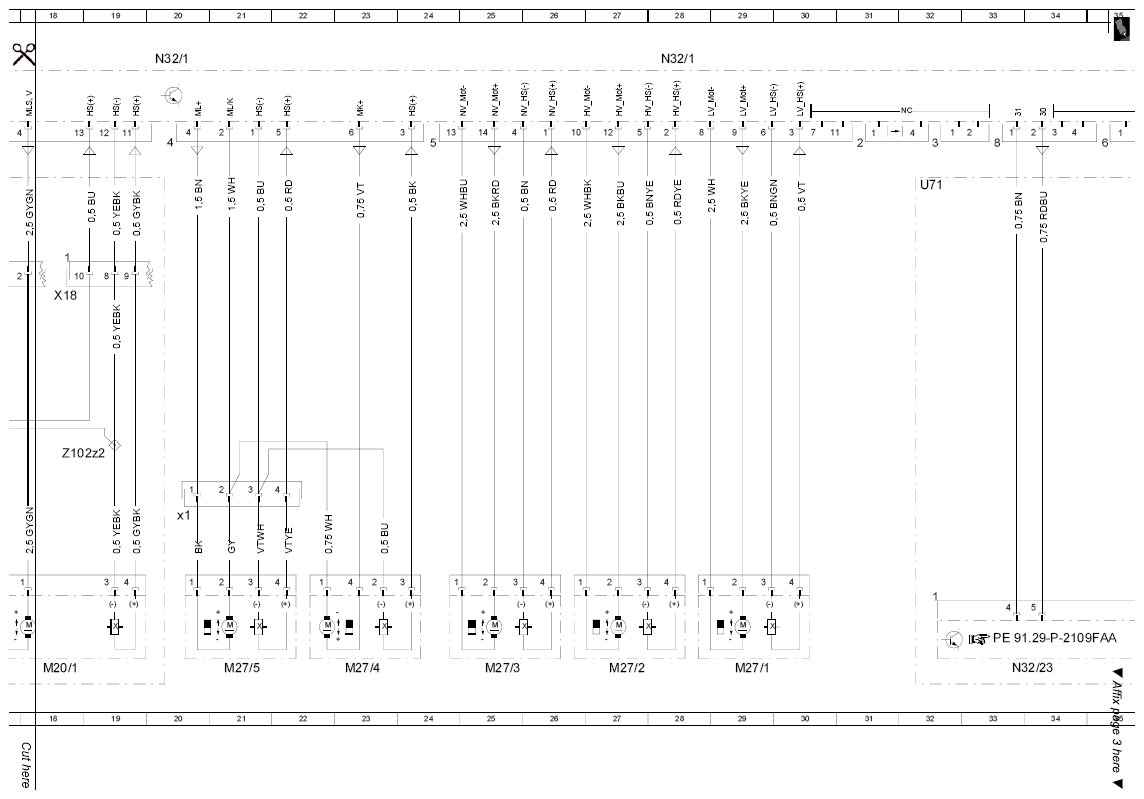

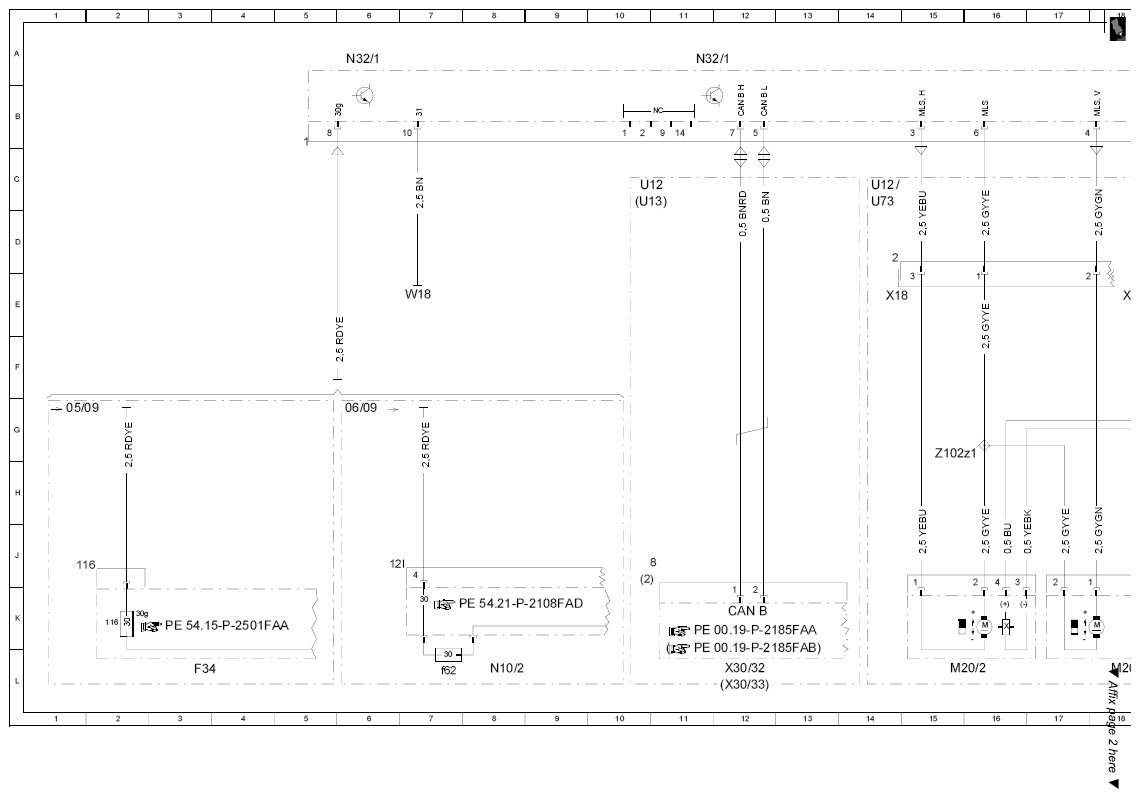

| N32/1 |
Driver seat control unit |
4A |
| N32/1 |
Driver seat control unit |
11A |
| N32/1 |
Driver seat control unit |
18A |
| N32/1 |
Driver seat control unit |
28A |
| U12 |
Valid for left-hand steering |
5C |
| U12 |
Valid for left-hand steering |
9C |
| U13 |
Valid for right-hand steering |
5D |
| U73 |
Valid for electric steering column adjustment |
9D |

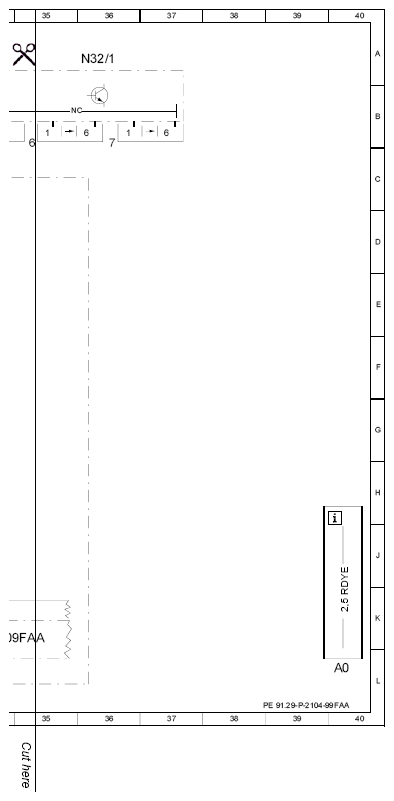

| W18 |
Left front seat crossmember ground point |
3E |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
9E |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
13E |
| X30/32 |
Left vehicle floor interior CAN voltage distributor electrical connector |
6L |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
6L |
| Z102z1 |
Steering column adjustment connector sleeve |
10H |
| Z102z2 |
Steering column adjustment connector sleeve |
13H |
