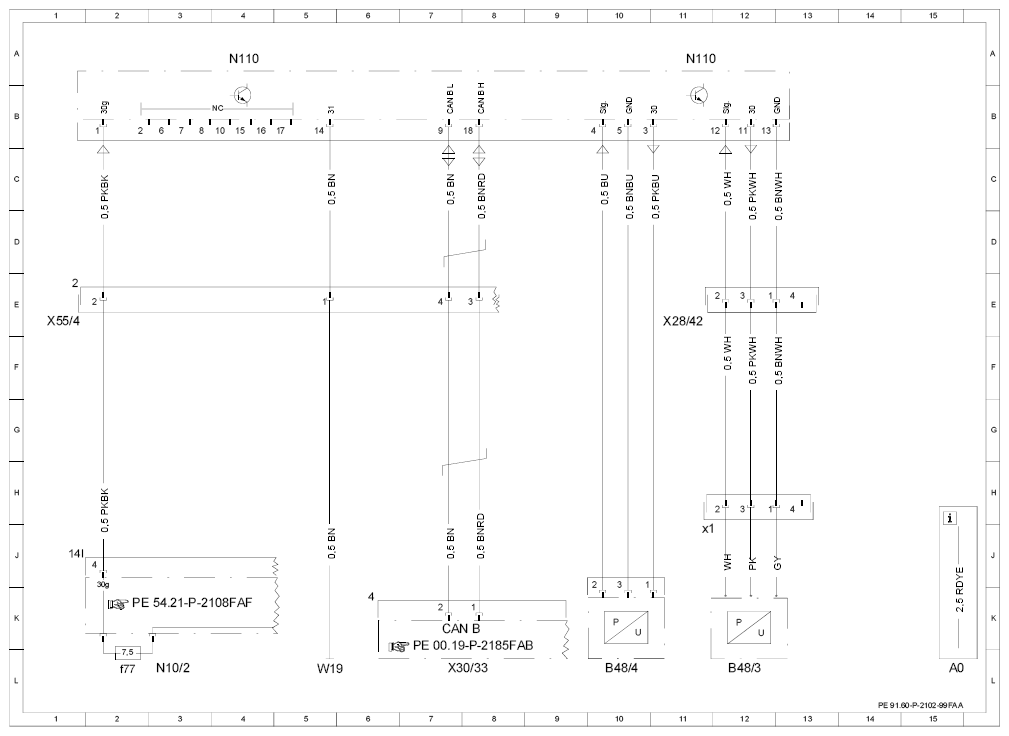

| A0 |
Explanation of color codes |
15L |
| B48/3 |
Belt tension sensor |
12L |
| B48/3x1 |
Belt tension sensor electrical connector |
11J |
| B48/4 |
Seat occupied recognition pressure sensor |
10L |
| CAN B |
Interior CAN |
7K |
| N10/2 |
Rear SAM control module with fuse and relay module |
3L |
| N10/2f77 |
Fuse 77 |
2L |
| N110 |
Weight Sensing System (WSS) control unit |
4A |
| N110 |
Weight Sensing System (WSS) control unit |
11A |
| W19 |
Right front seat crossmember ground point |
5L |
| X28/42 |
Belt tension sensor electrical connector |
11E |
| X30/33 |
Right vehicle floor interior CAN voltage distributor electrical connector |
7L |
| X55/4 |
Front passenger seat contacting strip |
1E |
