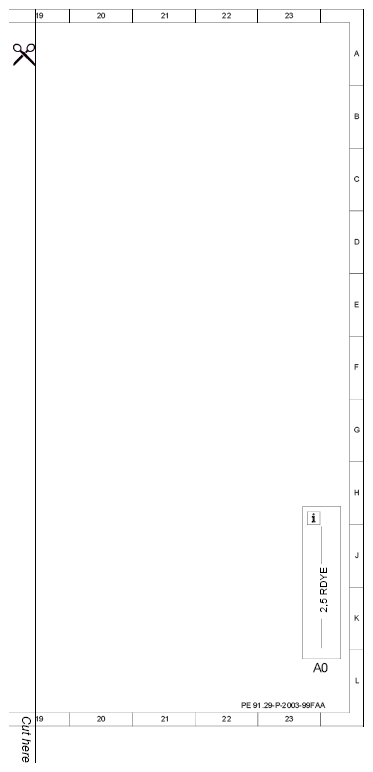

| A0 |
Color code key |
23L |
| M27/2 |
Driver seat height adjustment motor |
3L |
| M27/5 |
Driver seat backrest inclination adjustment motor |
2L |
| M27/5x1 |
Seat backrest inclination adjustment motor electrical connector, driver seat |
1H |
| M28/2 |
Front passenger seat height adjustment motor |
15L |
| M28/5 |
Front passenger seat backrest inclination adjustment motor |
13L |
| M28/5x1 |
Seat backrest inclination adjustment motor electrical connector, front passenger seat |
12H |
| N10/2 |
Rear SAM control unit with fuse and relay module |
9L |
| N10/2f44 |
Fuse 44 |
10L |
| N10/2f45 |
Fuse 45 |
7L |
| N10/2kF |
Seat adjustment relay |
8L |

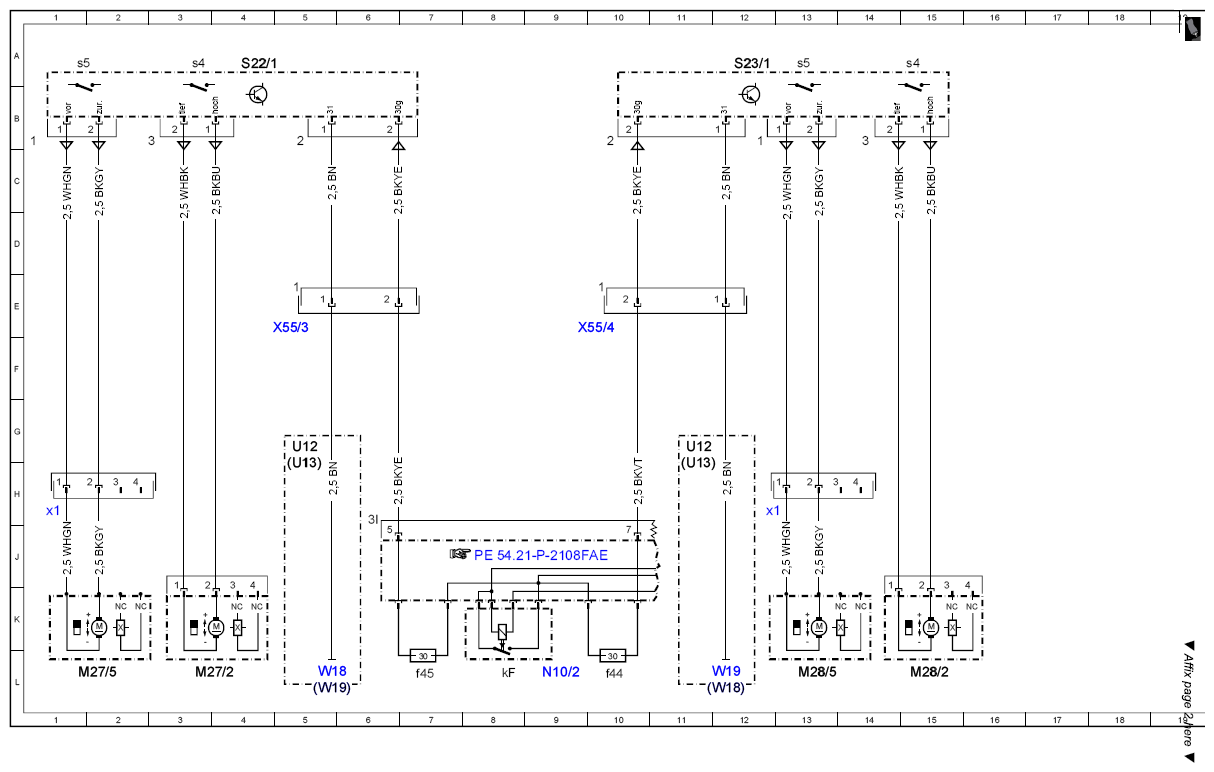

| S22/1 |
Driver seat partially electric seat adjustment switch |
4A |
| S22/1s4 |
Driver seat height adjustment switch |
3A |
| S22/1s5 |
Driver seat backrest adjustment switch |
1A |
| S23/1 |
Front passenger seat partially electric seat adjustment switch |
12A |
| S23/1s4 |
Front passenger seat height adjustment switch |
15A |
| S23/1s5 |
Front passenger seat backrest adjustment switch |
13A |
| U12 |
Valid for left-hand drive vehicles |
5G |
| U12 |
Valid for left-hand drive vehicles |
11G |
| U13 |
Valid for right-hand drive vehicles |
5H |
| U13 |
Valid for right-hand drive vehicles |
11H |
| W18 |
Left front seat crossmember ground point |
5L |
| W18 |
Left front seat crossmember ground point |
12L |
| W19 |
Right front seat crossmember ground point |
5L |
| W19 |
Right front seat crossmember ground point |
12L |
| X55/3 |
Driver seat connector block |
5E |
| X55/4 |
Front passenger seat connector block |
10E |
