| 1 |

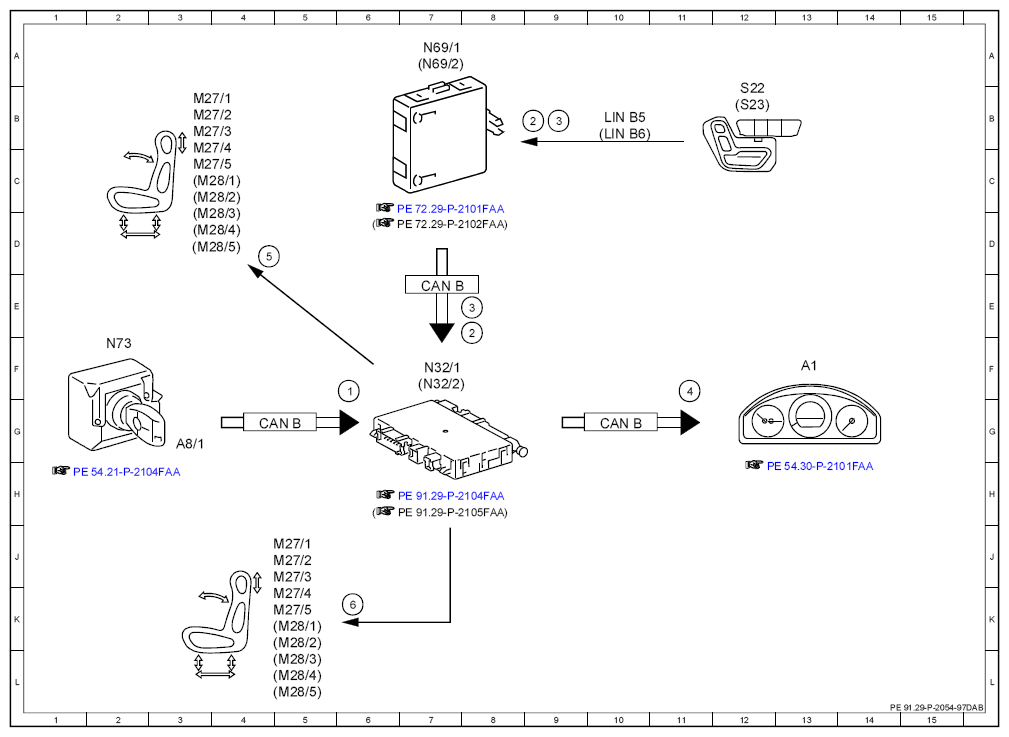

Circuit 15R (for normalization), status ON and circuit 50 (for adjustment), status OFF |
6F |
| 2 |
Manual adjustment or memory function, request |
8E |
| 2 |
Manual adjustment or memory function, request |
9B |
| 3 |
Store memory positions, request |
8E |
| 3 |
Store memory positions, request |
9B |
| 4 |
Acknowledgement tone after memory positions stored successfully, request |
11F |
| 5 |
Seat adjustment motors, actuation |
4D |
| 6 |
Seat adjustment motors, actuation |
6K |
| A1 |
Instrument cluster |
13F |
| A8/1 |
Transmitter key |
3G |
| CAN B |
Interior CAN |
7E |
| CAN B |
Interior CAN |
5G |
| CAN B |
Interior CAN |
10G |
| LIN B5 |
Left door LIN |
10B |
| LIN B6 |
Right door LIN |
10B |
| M27/1 |
Driver seat fore/aft adjustment motor |
4J |
| M27/1 |
Driver seat fore/aft adjustment motor |
3B |
| M27/2 |
Driver seat height adjustment motor |
4J |
| M27/2 |
Driver seat height adjustment motor |
3B |
| M27/3 |
Driver seat inclination adjustment motor |
4J |
| M27/3 |
Driver seat inclination adjustment motor |
3B |
| M27/4 |
Driver seat head restraint adjustment motor |
4K |
| M27/4 |
Driver seat head restraint adjustment motor |
3C |
| M27/5 |
Driver seat backrest inclination adjustment motor |
4K |
| M27/5 |
Driver seat backrest inclination adjustment motor |
3C |
| M28/1 |
Front passenger seat fore/aft adjustment motor |
4K |
| M28/2 |
Front passenger seat height adjustment motor |
4K |
| M28/3 |
Front passenger seat inclination adjustment motor |
4L |
| M28/4 |
Front passenger seat head restraint adjustment motor |
4L |
| M28/5 |
Front passenger seat backrest inclination adjustment motor |
4L |
| N32/1 |
Driver seat control unit |
7F |
| N32/2 |
Front passenger seat control unit |
7F |
| N69/1 |
Left front door control unit |
7A |
| N69/2 |
Right front door control unit |
7A |
| N73 |
Electronic ignition switch control unit |
2F |
| S22 |
Left front seat adjustment switch group |
12B |
| S23 |
Right front seat adjustment switch group |
12B |
