Electrical function schematic for multicontour seat - PE91.25-P-2051-97FAB

Code:	Designation:	Position:
1	Circuit 15R/circuit 15, status ON	4G
2	Power supply, status ON	4D
A8/1	Transmitter key	5K
CAN B	Interior CAN	3G
M40	Multicontour seat pneumatic pump	3C
N10/2	Rear SAM control unit with fuse and relay module	3E
N73	Electronic ignition switch control unit	3J

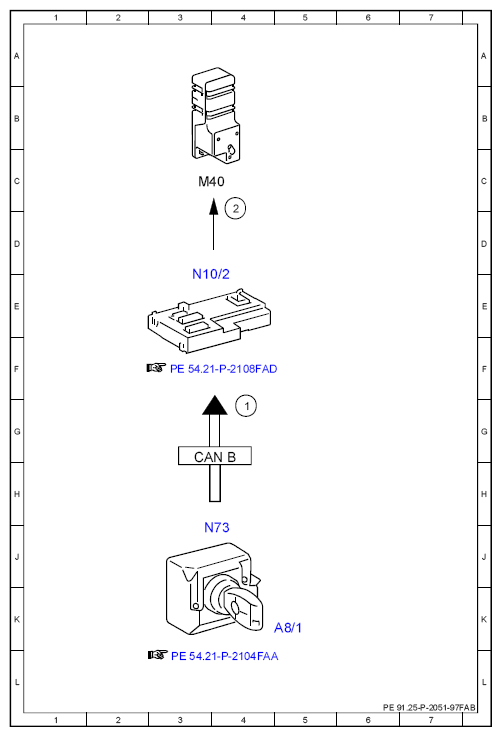

Fig 1: Multicontour Seat - Electrical Function Schematic

Courtesy of MERCEDES-BENZ USA
