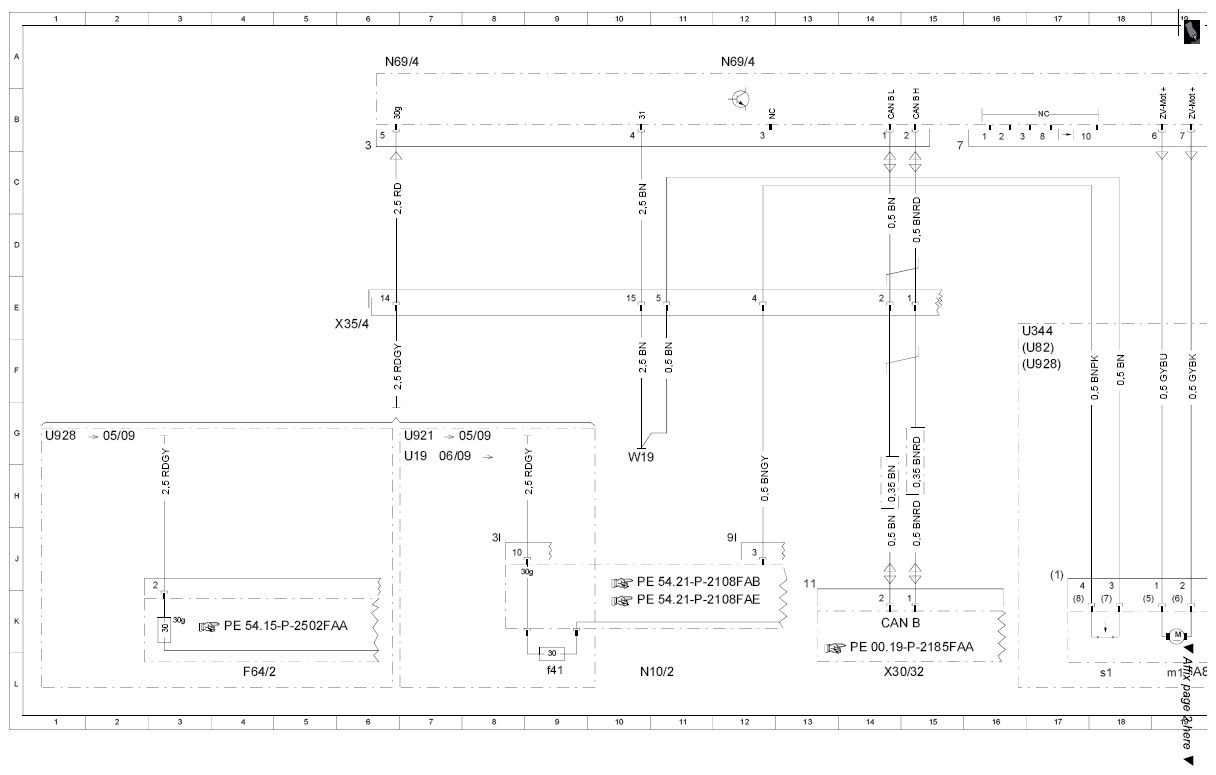

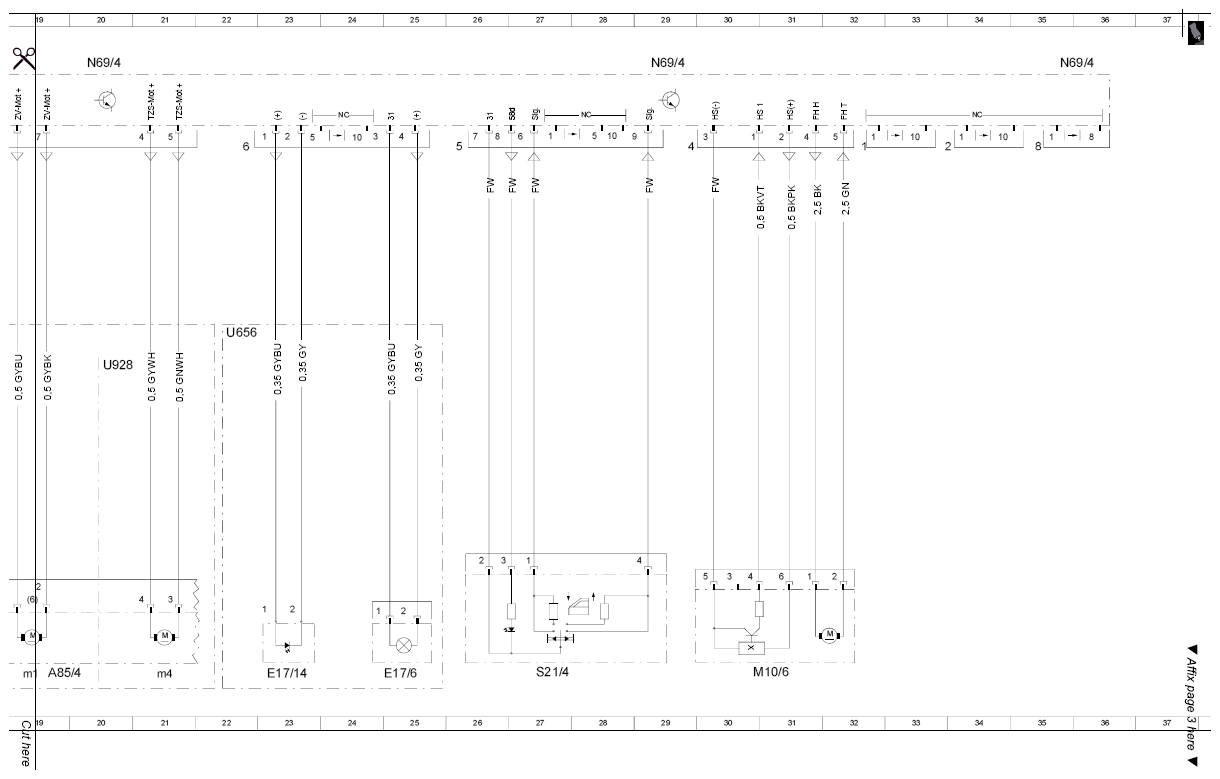

Wiring diagram for right rear door control unit (DCU [TSG]) - PE72.29-P-2104-99FAA
MODEL 204.0 /2 /9 control unit N69/4
| Code: | Designation: | Position: |
|---|---|---|

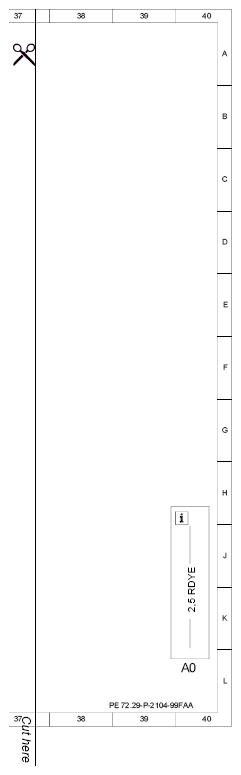

| A0 | Explanation of color codes | 31L |
| A85/4 | Right rear door lock | 10L |
| CANB | Interior CAN | 6K |
| E17/14 | Right rear door handle illumination | 13L |
| E17/6 | Right rear door exit and warning lamp | 15L |
| M10/6 | Right rear door power window motor | 21L |
| N10/2 | Rear SAM control module with fuse and relay module | 3L |
| N10/2f41 | Fuse 41 | 2L |
| N69/4 | Right rear door control unit | 4A |
| N69/4 | Right rear door control unit | 12A |
| N69/4 | Right rear door control unit | 19A |
| N69/4 | Right rear door control unit | 26A |
| S21/4 | Right rear power window switch | 17L |
| U656 | Valid for interior lights package | 12F |
| U928 | Valid for England | 9F |
| W19 | Right front seat crossmember ground point | 2H |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 6L |
| X35/4 | Right rear door electrical connector | 1E |
